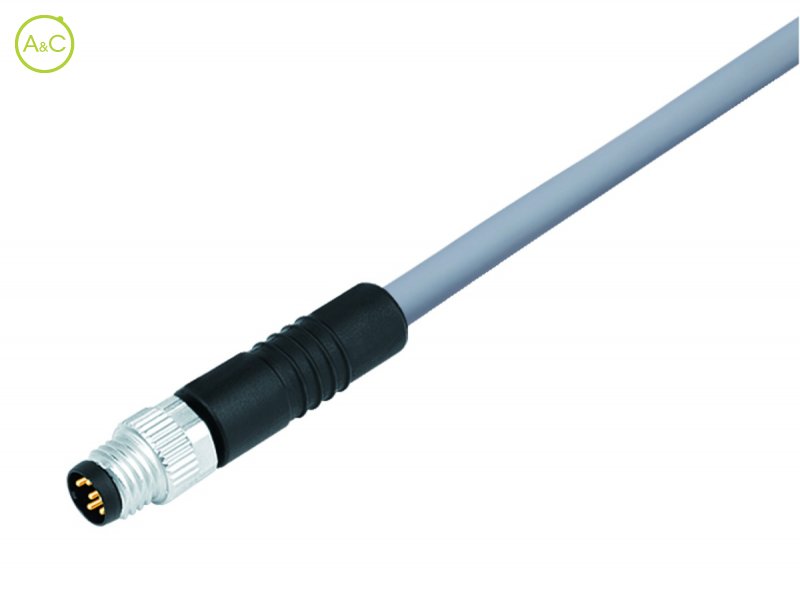

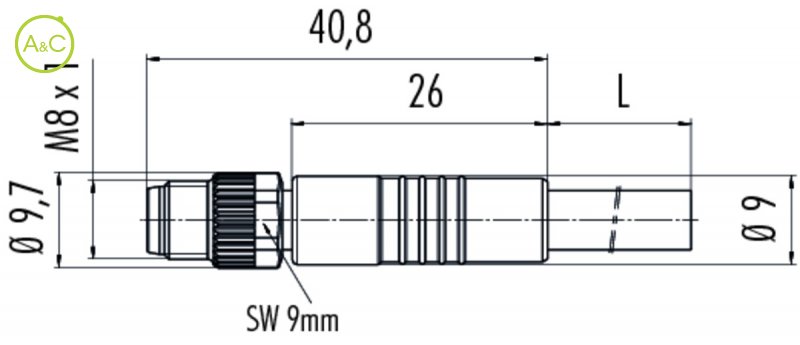

Male cable connector

  • Moulded, screw version, M8x1

Number Of Poles

  • 3
  • 4
  • 5
  • 8
Article Number 77 3405 0000 20003 0200 77 3405 0000 50003 0200 77 3405 0000 20003 0500
Old Article Number 79 3405 42 03 79 3405 52 03 79 3405 45 03
Connector Diameter 9.7 mm 9.7 mm 9.7 mm
Number Of Contacts 3 contacts 3 contacts 3 contacts
Connector Locking System Screw (M8) Screw (M8) Screw (M8)
Termination Crimp, moulded Crimp, moulded Crimp, moulded
Wire Section 0.34 mm² 0.34 mm² 0.34 mm²
Cable Length 2 mm 2 mm 5 mm
Protection Degree IP67 IP67 IP67
Mating Cycles >100 times >100 times >100 times
Upper Temperature +85 °C +85 °C +85 °C
Lower Temperature -25 °C -25 °C -25 °C
Rated Voltage 60 60 60
Rated Impuls Voltage 1500 V 1500 V 1500 V
Pollution Degree 3 3 3
Overvoltage Categorie II II II
Material Group II II II
Rated Current (40°) 4 A 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ 3 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass) CuZn (Brass)
Plating Au (Gold) Au (Gold) Au (Gold)
Material Of Insert PUR PUR PUR
Material Of Housing PUR PUR PUR
Cable Diameter 4,5 mm 4,3 mm 4,5 mm
Cable Jacket Material PVC PUR PVC
Insulation Wire PVC PP PVC
Wire Gauge 22 AWG 22 AWG 22 AWG
Datenblatt Download Datenblatt Download Datenblatt Download Datenblatt
