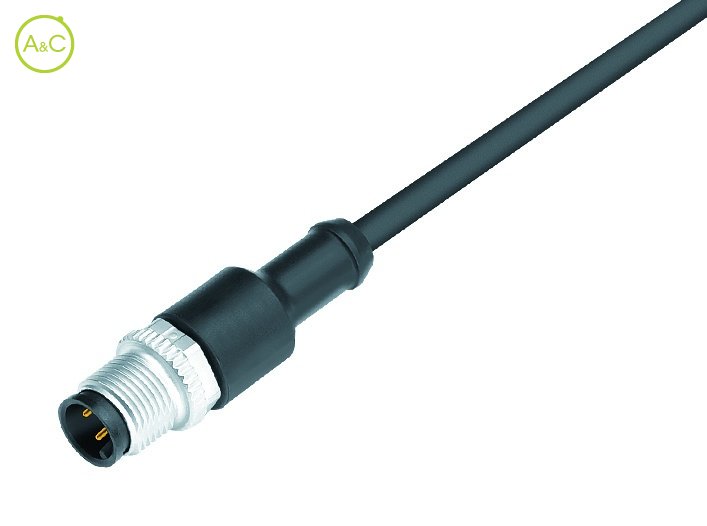

Male cable connector

  • Moulded

Number Of Poles

  • 3
  • 4
  • 5
  • 8
  • 12
Article Number 77 3429 0000 20003 0200 77 3429 0000 50003 0200 77 3429 0000 20003 0500 77 3429 0000 50003 0500
Old Article Number 79 3429 12 04 79 3429 32 04 79 3429 15 04 79 3429 35 04

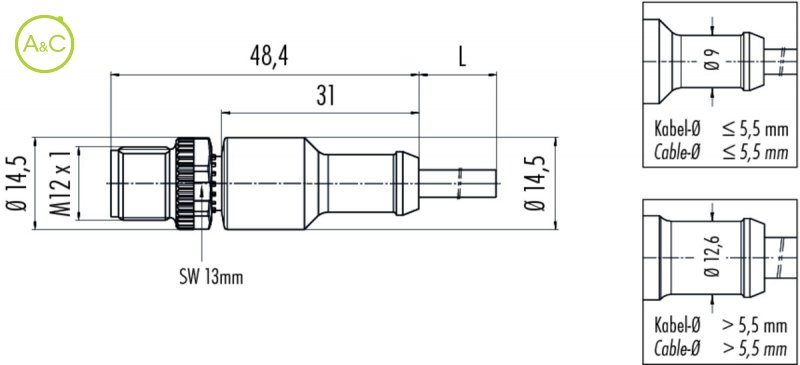

Connector Diameter 14.5 mm 14.5 mm 14.5 mm 14.5 mm
Number Of Contacts 3 contacts 3 contacts 3 contacts 3 contacts
Connector Locking System Screw (M12-A) Screw (M12-A) Screw (M12-A) Screw (M12-A)
Termination Crimp, moulded Crimp, moulded Crimp, moulded Crimp, moulded
Wire Section 0.34 mm² 0.34 mm² 0.34 mm² 0.34 mm²
Cable Length 2 mm 2 mm 5 mm 5 mm
Protection Degree IP68 IP68 IP68 IP68
Mating Cycles >100 times >100 times >100 times >100 times
Upper Temperature +85 °C +85 °C +85 °C +85 °C
Lower Temperature -25 °C -25 °C -25 °C -25 °C
Rated Voltage 250 250 250 250
Rated Impuls Voltage 2500 V 2500 V 2500 V 2500 V
Pollution Degree 3 3 3 3
Overvoltage Categorie II II II II
Material Group II II II II
Rated Current (40°) 4 A 4 A 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ 3 mΩ 3 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass) CuZn (Brass) CuZn (Brass)
Plating Au (Gold) Au (Gold) Au (Gold) Au (Gold)
Material Of Insert PUR PUR PUR PUR
Material Of Housing PUR PUR PUR PUR
Cable Diameter 4,5 mm 4,5 mm 4,5 mm 4,5 mm
Cable Jacket Material PVC PUR PVC PUR
Insulation Wire PVC PVC PVC PVC
Datenblatt Download Datenblatt Download Datenblatt Download Datenblatt Download Datenblatt
