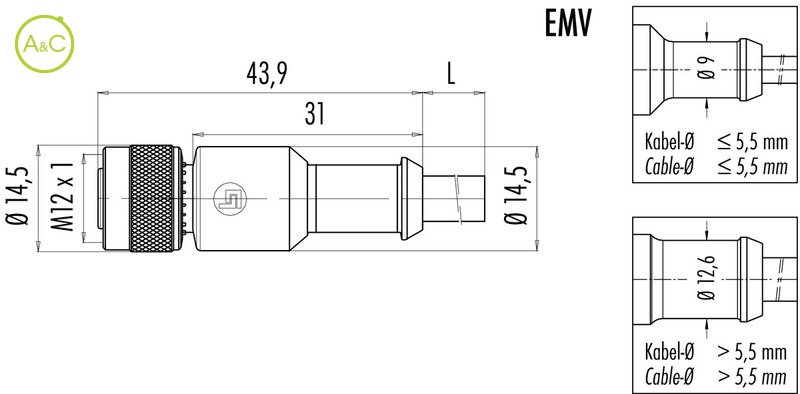

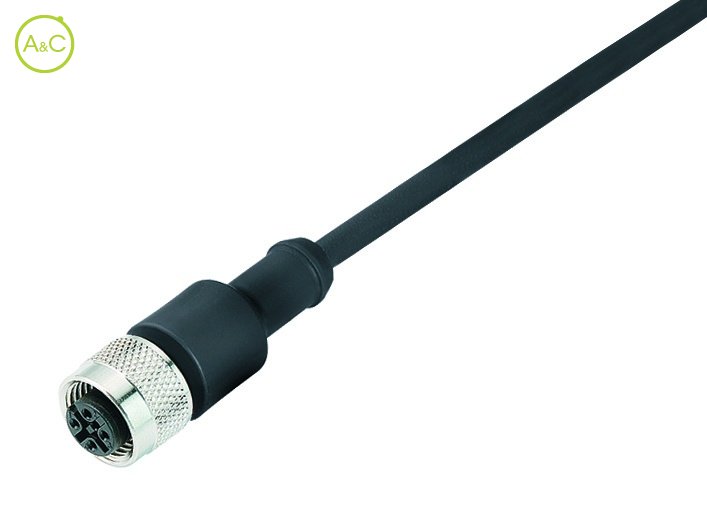

Female cable connector

  • Moulded, shielded

Number Of Poles

  • 3
  • 4
  • 5
  • 8
Article Number 77 3530 0000 20703 0500 77 3530 0000 50703 0500
Old Article Number 79 3530 15 04 79 3530 35 04
Connector Diameter 14.5 mm 14.5 mm
Number Of Contacts 3 contacts 3 contacts
Connector Locking System Screw (M12-A) Screw (M12-A)
Termination Crimp, moulded Crimp, moulded
Wire Section 0.34 mm² 0.34 mm²
Cable Length 5 mm 5 mm
Protection Degree IP67 IP67
Mating Cycles >100 times >100 times
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
Rated Voltage 250 250
Rated Impuls Voltage 2500 V 2500 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group II II
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuSn (Bronze) CuSn (Bronze)
Plating Au (Gold) Au (Gold)
Material Of Insert PUR PUR
Material Of Housing PUR PUR
Cable Diameter 5 mm 5 mm
Cable Jacket Material PVC PUR
Insulation Wire PVC PVC
Datenblatt Download Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
