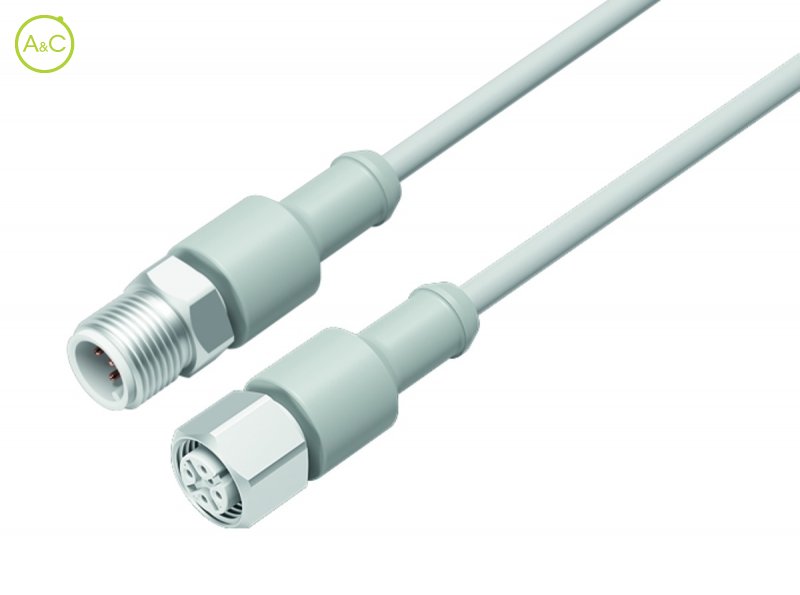

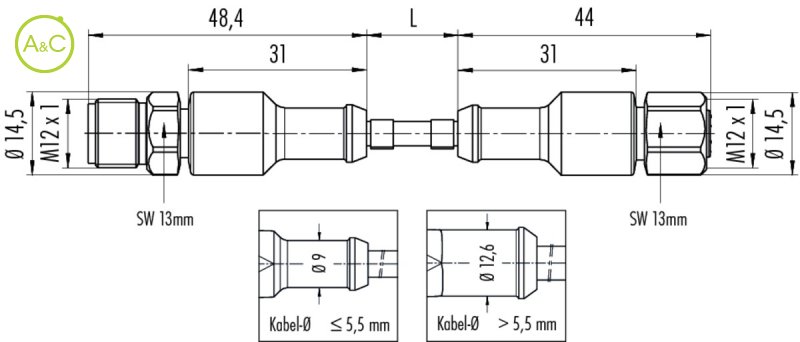

Connecting cable, Male cable connector M12x1 - Female cable connector M12x1

Number Of Poles

  • 3
  • 4
  • 5
  • 8
  • 12
Article Number 77 3730 3729 40403 0200 77 3730 3729 40403 0500
Color Grey Grey
Connector Diameter 14.5 mm 14.5 mm
Number Of Contacts 3 contacts 3 contacts
Connector Locking System Screw (M12-A) Screw (M12-A)
Termination moulded on cable moulded on cable
Wire Section 0.34 mm² 0.34 mm²
Protection Degree IP69K, IP67 IP69K, IP67
Mating Cycles >100 times >100 times
Upper Temperature +105 °C +105 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 250 250
Rated Impuls Voltage 2500 V 2500 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group II II
Rated Current (40°) 4 A 4 A
Material Of Contact Cuzn (Brass), Cusn (Bronze) Cuzn (Brass), Cusn (Bronze)
Plating Au (Gold) Au (Gold)
Material Of Insert PP PP
Material Of Housing PP PP
Insulation Single Lead PVC PVC
Single Lead Structure 42x0,1 42x0,1
Conductor Resistance 57 Ω/km 57 Ω/km
Bending Radius Cable Fixed Min. 5xD Min. 5xD
Bending Radius Cable Movable min. 10xD min. 10xD
Cable Diameter 4,5 mm 4,5 mm
Wire Gauge 22 AWG 22 AWG
Datenblatt Download Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
