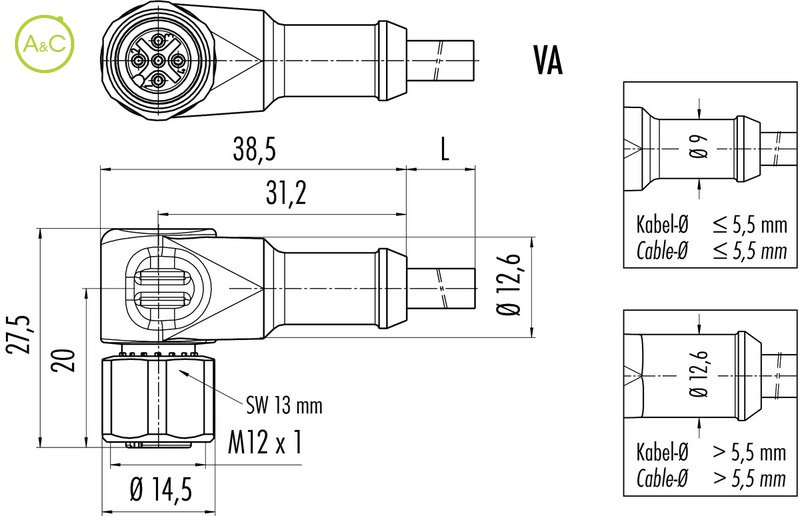

Female angled connector

  • Moulded, stainless steel ring nut

Number Of Poles

  • 3
  • 4
  • 5
  • 8
Article Number 77 3734 0000 50003 0500
Old Article Number 79 3434 55 04
Connector Diameter 14.5 mm
Number Of Contacts 3 contacts
Connector Locking System Screw (M12-A)
Termination Crimp, moulded
Wire Section 0.34 mm²
Cable Length 5 mm
Protection Degree IP68
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -25 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Insert PUR
Material Of Housing PUR
Cable Diameter 4,5 mm
Cable 3 x 0,34 PUR mm²
Cable Jacket Material PUR
Insulation Wire PVC
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
