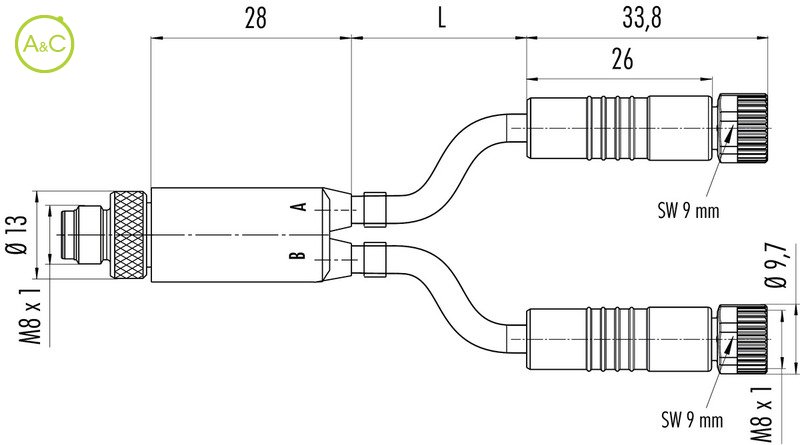

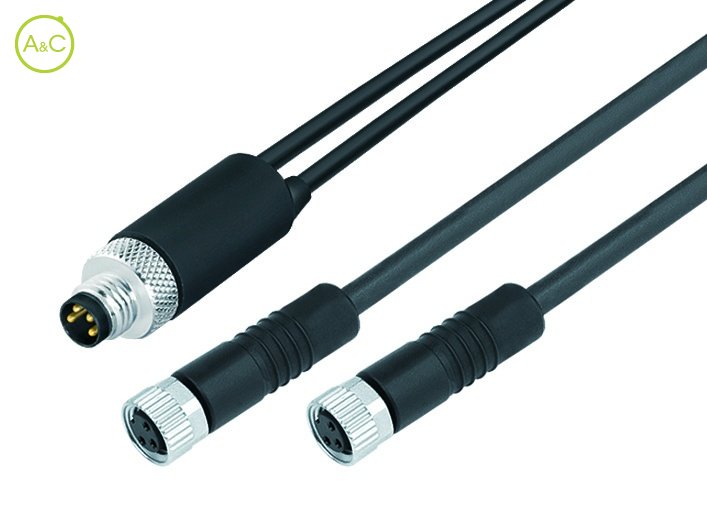

Duo connector M8 - 2 female connectors M8

Number Of Poles

  • 4/3
Article Number 79 5203 03 04 79 5203 06 04 79 5203 10 04
Connector Diameter 13 mm 13 mm 13 mm
Number Of Contacts 4/3 contacts 4/3 contacts 4/3 contacts
Connector Locking System Screw Screw Screw
Termination Crimp, moulded Crimp, moulded Crimp, moulded
Wire Section 0.25 mm² 0.25 mm² 0.25 mm²
Protection Degree IP67 IP67 IP67
Mating Cycles >100 times >100 times >100 times
Upper Temperature +85 °C +85 °C +85 °C
Lower Temperature -25 °C -25 °C -25 °C
Rated Voltage 60 60 60
Rated Impuls Voltage 1500 V 1500 V 1500 V
Pollution Degree 3 3 3
Overvoltage Categorie II II II
Material Group II II II
Rated Current (40°) 4 A 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ 3 mΩ
Material Of Contact Pin CuZn (Brass), Socket (Bronze) Pin CuZn (Brass), Socket (Bronze) Pin CuZn (Brass), Socket (Bronze)
Plating Au (Gold) Au (Gold) Au (Gold)
Material Of Insert PUR PUR PUR
Material Of Housing PUR PUR PUR
Cable Diameter 3 mm 3 mm 3 mm
Cable 3 x 0,14 mm² 3 x 0,14 mm² 3 x 0,14 mm²
Cable Jacket Material PUR PUR PUR
Insulation Wire PVC PVC PVC
Datenblatt Download Datenblatt Download Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
