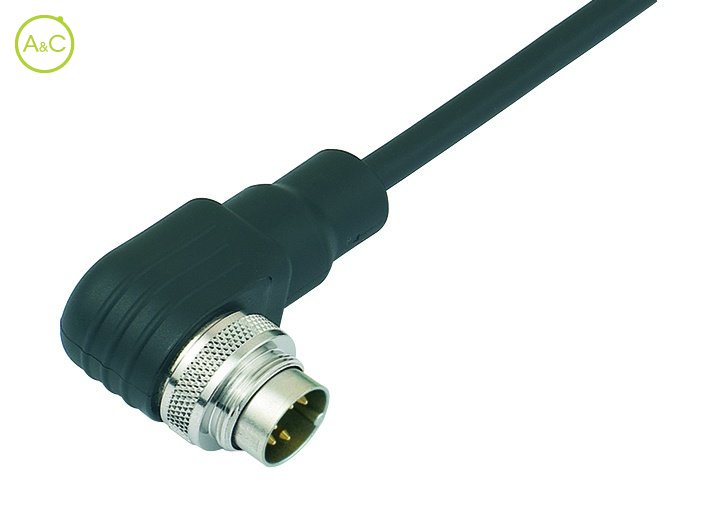

Male angled connector

  • Shielded

Number Of Poles

  • 5
  • 6
  • 8 DIN
  • 12
Article Number 79 6313 200 05
Connector Diameter 20 mm
Number Of Contacts 5 contacts
Connector Locking System Screw (M16)
Termination Solder, moulded
Wire Section 5 x 0,25 mm²
Cable Length 2 mm
Protection Degree IP67
Mating Cycles >500 times
Upper Temperature +70 °C
Lower Temperature -25 °C
Rated Voltage 250 (32)
Rated Impuls Voltage 1500 V
Pollution Degree 1 (2)*
Overvoltage Categorie I (II)*
Material Group III
Rated Current (40°) 3 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PBT (UL 94 V-0)
Material Of Housing PUR
Cable Diameter 5,3 mm
Remark * *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V.
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
