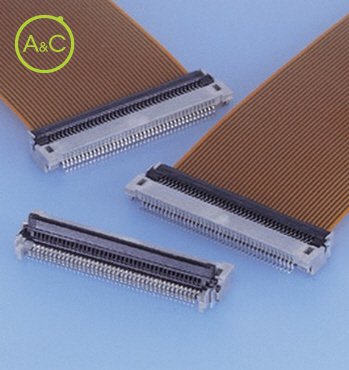

Female Connector for FXM Connector

  • FXM CONNECTOR
Download Datenblatt

Number Of Poles

  • 80
Article Number 80FXM-RSM1-G-1-TB
Number Of Contacts 80
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 0.3mm Pitch ZIF Connector for FPC
Connection Type Printed Circuit Board Connectors
Pitch / Style 0.30 mm
Rated Current (ac/dc) 0.2 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

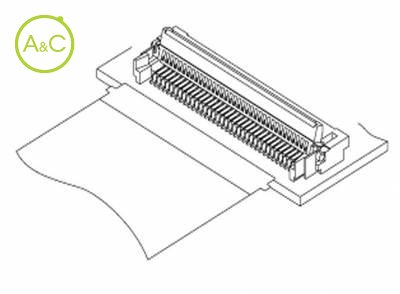

A substantial size for the 0.3mm (.012") pitch connector ensures easy handling. Moreover, since this connector accepts a FPC with protrusion providing secure as well as foolproof mating at the customers production line. Double ZIF structure Double ZIF contact structure enables untroubled FPC insertion. Self-lock mechanism enables the cover to close by one-touch operation A rotating flip-lock cover structure provides easy cover operation. A FPC with protrusion improves operability and reliability A FPC with protrustion makes FPC insertion easier so that it will impede improper mating and mis-insertion and therefore, provides excellent operability and reliable connection. RoHS Compliant
