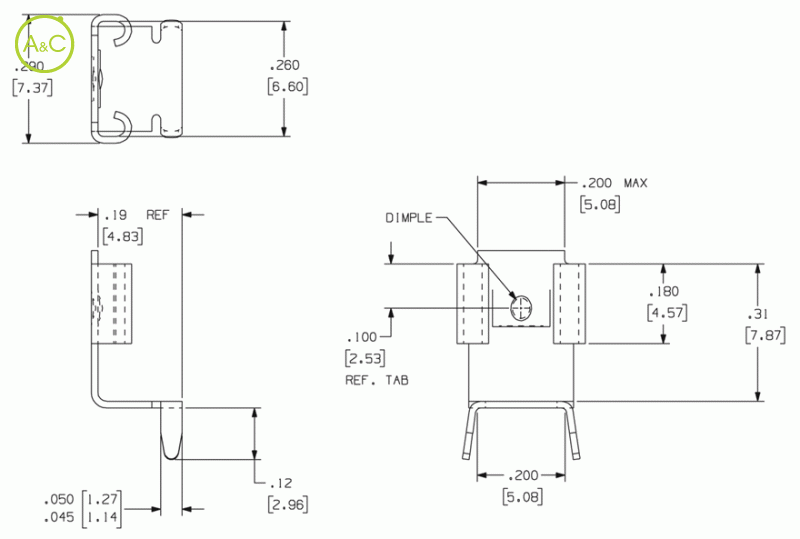

0.250” (6.35mm) Tab Receptacles

  • Mating type Vertical

Current Rating

  • 10 Amperes
  • 15 Amperes
Article Number 983
Packaging Loose
Mating Terminal Size 0.250" x 0.016" (6.35mm x 0.41mm) Tin/Brass Male
Material Thickness / Type 0.015" (0.38mm) C26000 Brass
Standard Finish 100% Tin over Copper
Mating Type Vertical
Mounting Type Outward or Inward Splay
Mounting Hole Diameter 2 holes 0.058" ±0.003" (1.473mm ±0.076mm) on 0.200" ±0.005" (5.08mm ±0.127mm) centers
Resistance Rating 10mOhm Max
Mating Entry Top Side
Temperature Rating -65° to 85°C
Pieces Per Reel (loose Part No.) NA
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
