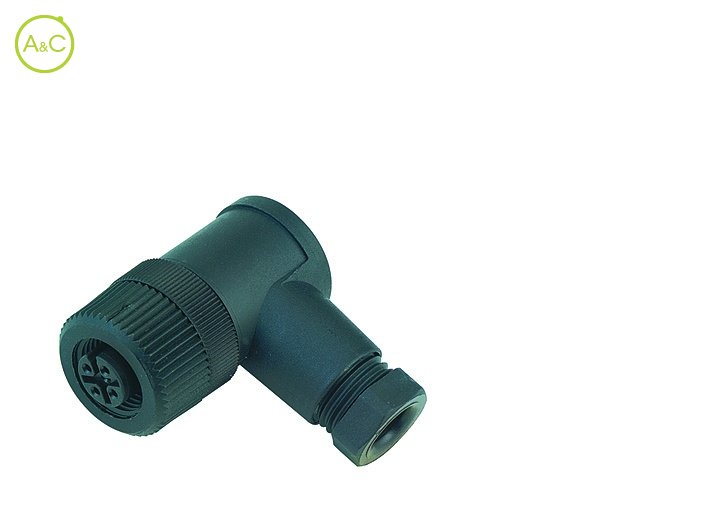

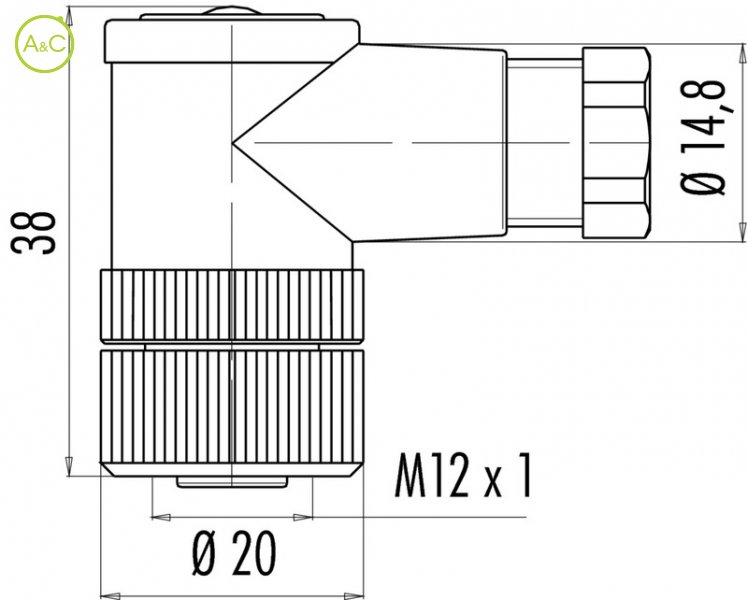

Female angled connector

  • Plastic locking system, screw clamp connection
  • UL-approval

Number Of Poles

  • 4
  • 5
Article Number 99 0430 00 04 99 0430 20 04 99 0430 69 04 99 0430 68 04
Connector Diameter 20 mm 20 mm 20 mm 20 mm
Number Of Contacts 4 contacts 4 contacts 4 contacts 4 contacts
Connector Locking System Screw (M12-A) Screw (M12-A) Screw (M12-A) Screw (M12-A)
Termination Screw Screw Screw Screw
Wire Section 0.75 mm² 0.75 mm² 0.75 mm² 0.75 mm²
Protection Degree IP67 IP67 IP67 IP67
Mating Cycles >50 times >50 times >50 times >50 times
Upper Temperature +85 °C +85 °C +85 °C +85 °C
Lower Temperature -40 °C -40 °C -40 °C -40 °C
Rated Voltage 250 250 250 250
Rated Impuls Voltage 2500 V 2500 V 2500 V 2500 V
Pollution Degree 3 3 3 3
Overvoltage Categorie II II II II
Material Group II II II II
Rated Current (40°) 4 A 4 A 4 A 4 A
Max. Contact Resistance 8 mΩ 8 mΩ 8 mΩ 8 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass) CuZn (Brass) CuZn (Brass)
Plating CuSnZn (Optalloy) CuSnZn (Optalloy) CuSnZn (Optalloy) CuSnZn (Optalloy)
Material Of Insert PA PA PA PA
Material Of Housing PBT PBT PBT PBT
Datenblatt Download Datenblatt Download Datenblatt Download Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
