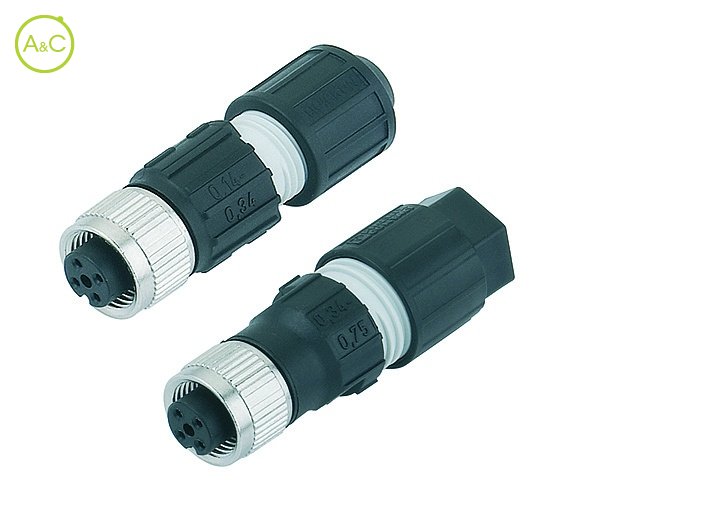

Female cable connector

  • With IDT connection, contact surface gold

Number Of Poles

  • 4
Article Number 99 0528 14 04 99 0528 12 04

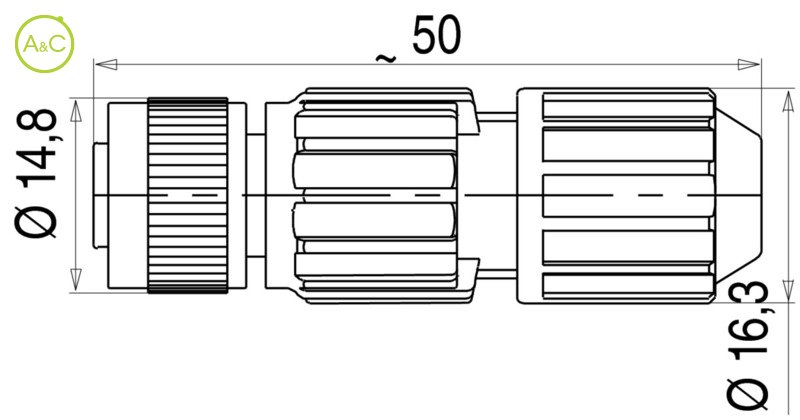

Connector Diameter 16.3 mm 16.3 mm
Number Of Contacts 4 contacts 4 contacts
Connector Locking System Screw (M12-A) Screw (M12-A)
Termination IDT Connection IDT Connection
Wire Section 0,14-0,34 mm² 0,34-0,75 mm²
Protection Degree IP67 IP67
Mating Cycles >100 times >100 times
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
Rated Voltage 250 250
Rated Impuls Voltage 2500 V 2500 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group III III
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass)
Plating Au (Gold) Au (Gold)
Material Of Insert PA PA
Material Of Housing CuZn nickel plated, PA CuZn nickel plated, PA
Cable Outlet 3,5-6 mm 4-8 mm
Datenblatt Download Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
