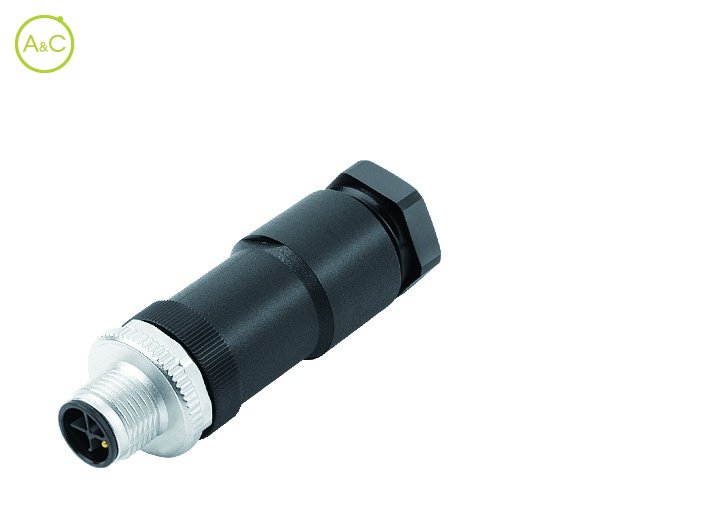

Male cable connector

  • Power, S-coding

Number Of Poles

  • 2+PE
  • 3+PE
Article Number 99 0689 19 04

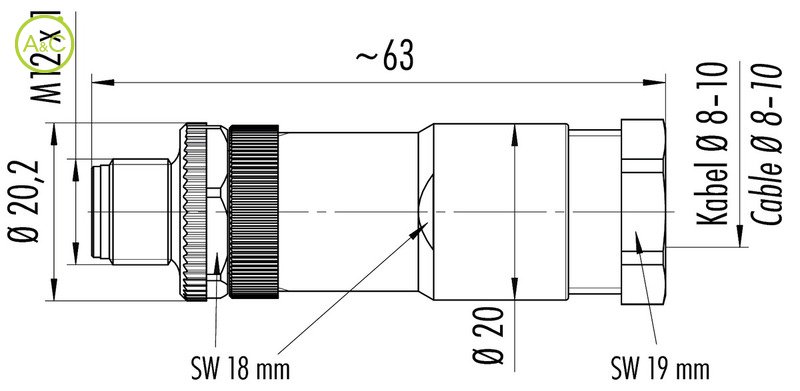

Connector Diameter 20.2 mm
Number Of Contacts 3+PE contacts
Connector Locking System Screw (M12-S)
Termination Screw clamp with insulated ferules
Wire Section 1.5 mm²
Protection Degree IP67
Mating Cycles >50 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 630
Rated Impuls Voltage 6000 V
Pollution Degree 3
Overvoltage Categorie III
Material Group III
Rated Current (40°) 12 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing PA
Cable Outlet 8-10 mm
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
