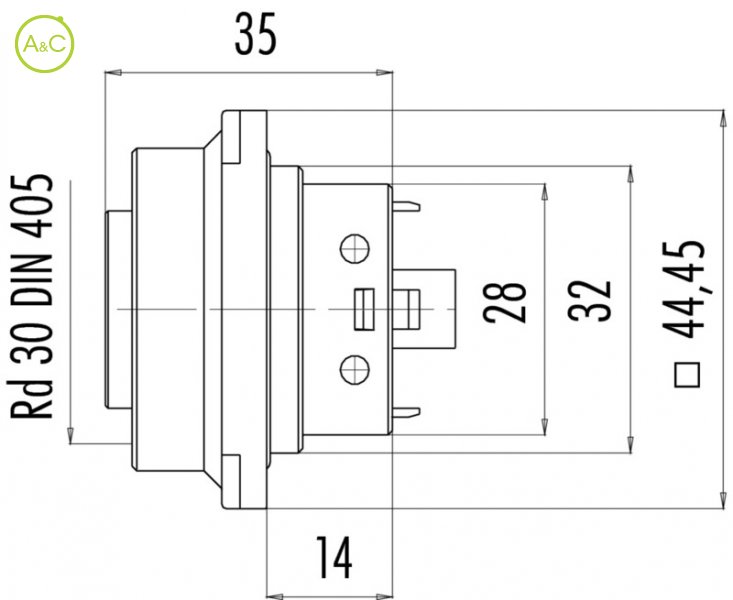

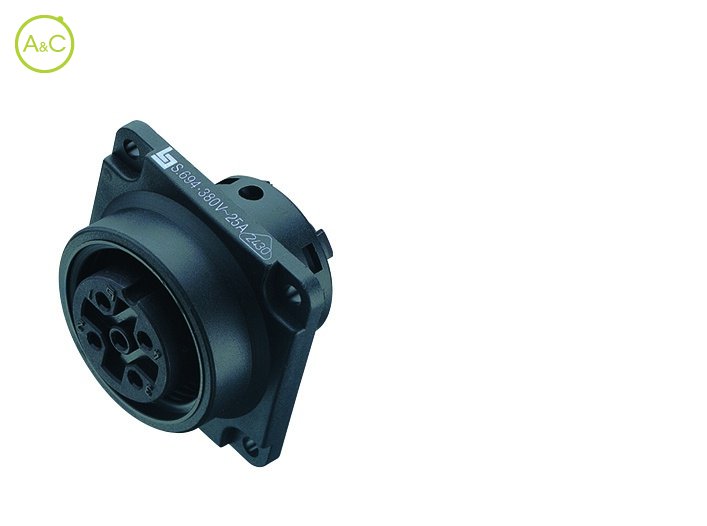

Female panel mount connector

Number Of Poles

  • 4+PE
  • 12+PE
  • 24
Article Number 99 0712 00 05
Connector Diameter 40 mm
Number Of Contacts 4+PE contacts
Connector Locking System Screw (RD30)
Termination Screw
Wire Section 2.5 mm²
Protection Degree IP65
Mating Cycles >500 times
Upper Temperature +100 °C
Lower Temperature -40 °C
Rated Voltage 400
Rated Impuls Voltage 6000 V
Pollution Degree 3
Overvoltage Categorie III
Material Group III
Rated Current (40°) 20 A
Max. Contact Resistance 5 mΩ
Material Of Contact CuSn (Bronze)
Plating Ag (Silver)
Material Of Insert PA (UL 94 HB)
Material Of Housing PA (UL 94 V-0)
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
