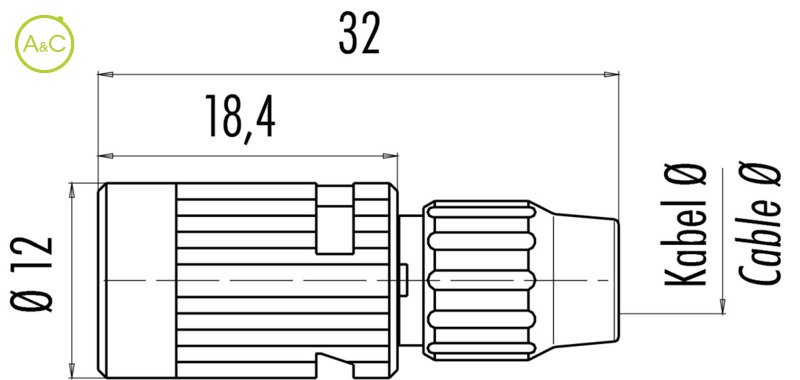

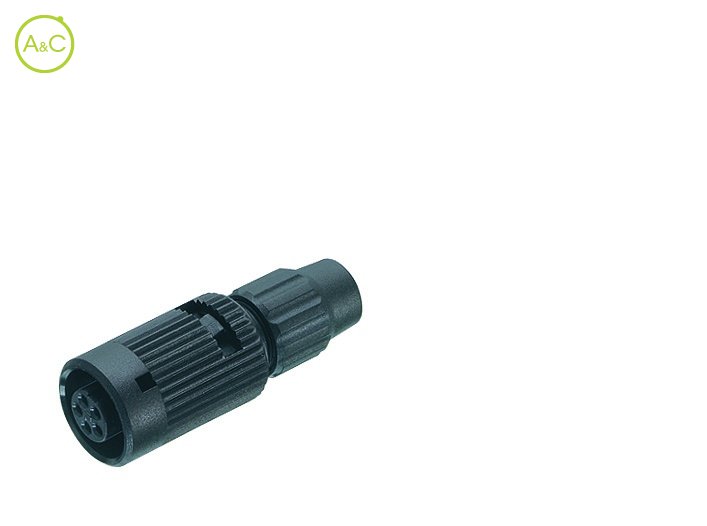

Female cable connector

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 7
  • 8
Article Number 99 0972 100 02 99 0972 102 02
Connector Diameter 12 mm 12 mm
Number Of Contacts 2 contacts 2 contacts
Connector Locking System Bayonet Bayonet
Termination Solder Solder
Wire Section 0.25 mm² 0.25 mm²
Protection Degree IP40 IP40
Mating Cycles >500 times >500 times
Upper Temperature +85 °C +85 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 125 125
Rated Impuls Voltage 1500 V 1500 V
Pollution Degree 1 1
Overvoltage Categorie II II
Material Group III III
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuSn (Bronze) CuSn (Bronze)
Plating Au (Gold) Au (Gold)
Material Of Insert PA (UL 94 V-0) PA (UL 94 V-0)
Material Of Housing PA (UL 94 HB) PA (UL 94 HB)
Datenblatt Download Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
