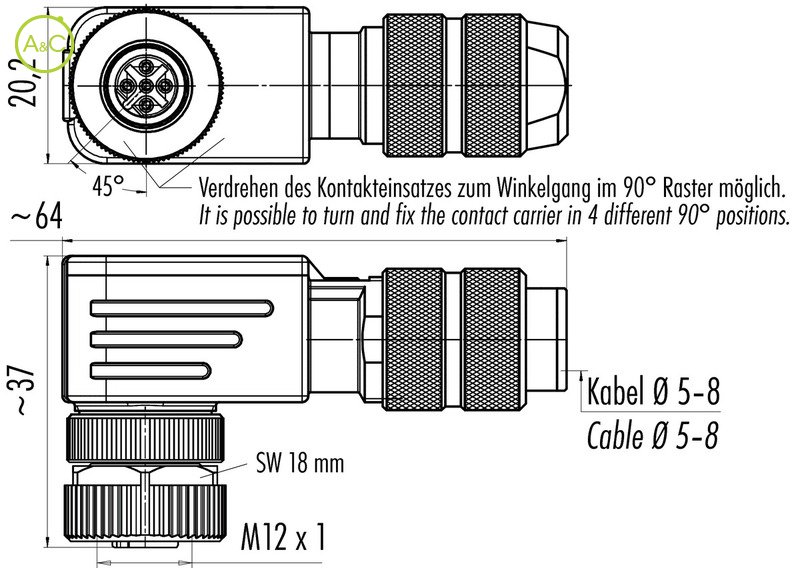

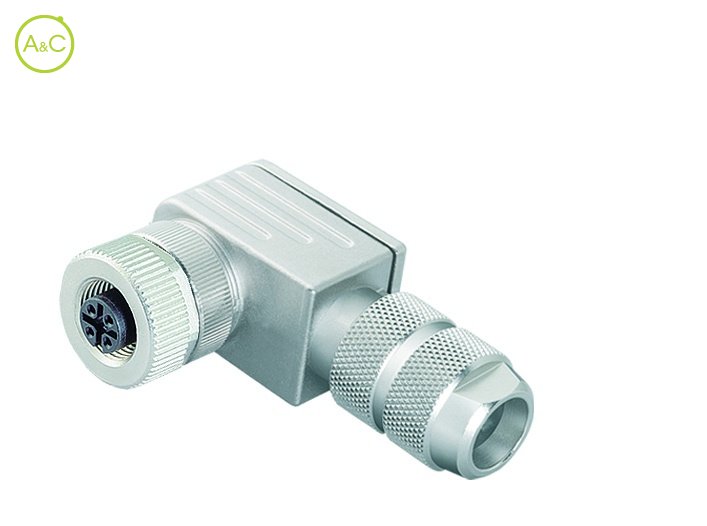

Female angled connector

  • Shieldable, screw termination, iris type spring
  • UL-approval

Number Of Poles

  • 5
Article Number 99 1438 820 05
Connector Diameter 20.2 mm
Number Of Contacts 5 contacts
Connector Locking System Screw (M12-B)
Termination Screw
Wire Section 0.75 mm²
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 125
Rated Impuls Voltage 1500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing PA, zinc diecasting nickel plated
Cable Outlet 5-8 mm
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
