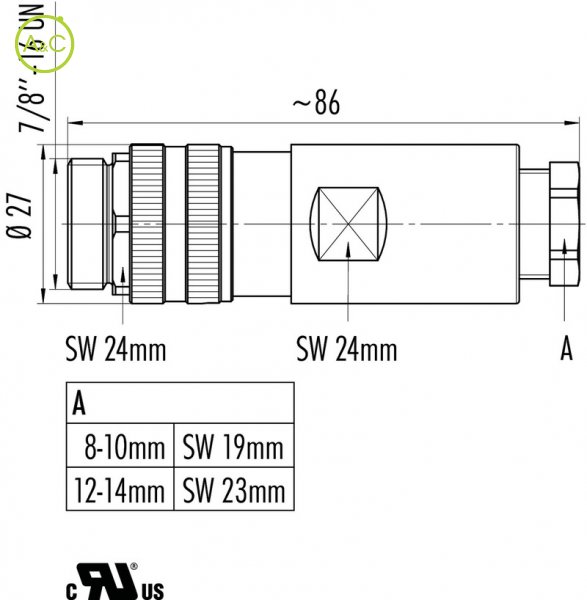

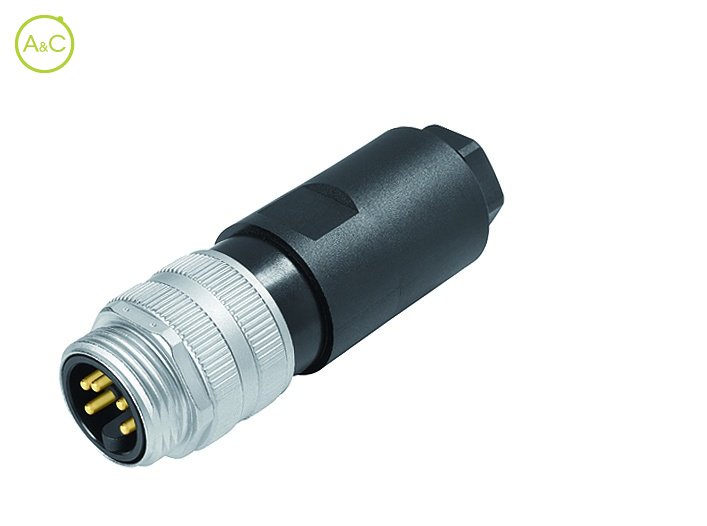

Male cable connector

  • UL-approval

Number Of Poles

  • 2+PE
  • 3+PE
  • 4+PE
Article Number 99 2441 21 03 99 2441 42 03
Connector Diameter 27 mm 27 mm
Number Of Contacts 2+PE contacts 2+PE contacts
Connector Locking System Screw (7/8"-16 UN) Screw (7/8"-16 UN)
Termination Screw Screw
Wire Section 1.5 mm² 1.5 mm²
Protection Degree IP67 IP67
Mating Cycles >50 times >50 times
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
Rated Voltage 300 (UL 600) 300 (UL 600)
Rated Impuls Voltage 4000 V 4000 V
Pollution Degree 3 3
Overvoltage Categorie III III
Material Group III III
Rated Current (40°) 12 A 12 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass)
Plating Au (Gold) Au (Gold)
Material Of Insert PUR/PA (UL 94 HB) PUR/PA (UL 94 HB)
Material Of Housing PBT (UL 94 V-0) PBT (UL 94 V-0)
Datenblatt Download Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
