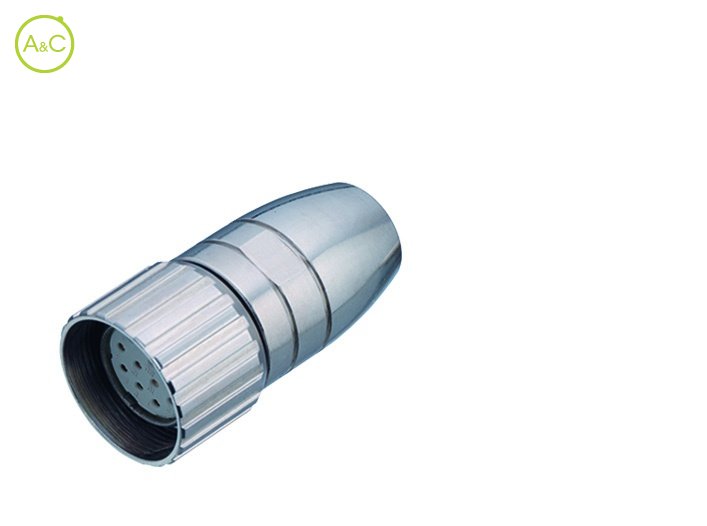

Female cable connector

  • Shieldable

Number Of Poles

  • 6
  • 9
  • 12
  • 16
  • 19
Article Number 99 4646 00 06

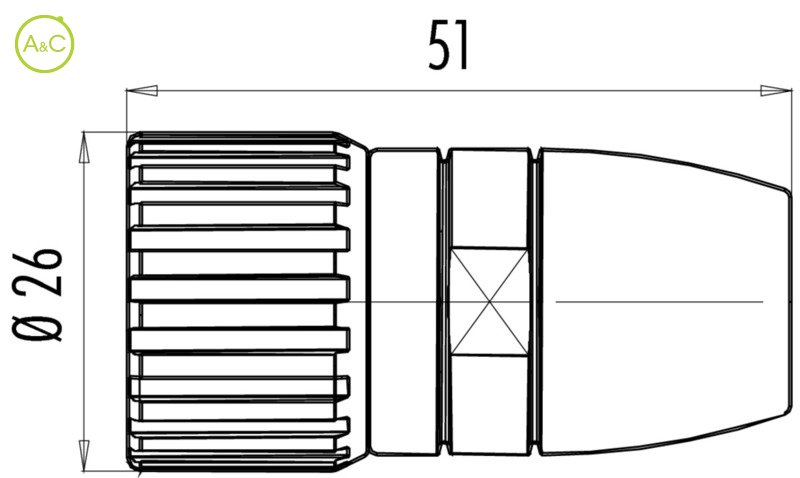

Connector Diameter 26 mm
Number Of Contacts 6 contacts, clockwise
Connector Locking System Screw (M23)
Termination Solder
Wire Section 2.5 mm²
Protection Degree IP67
Mating Cycles >50 times
Upper Temperature +125 °C
Lower Temperature -20 °C
Rated Voltage 300
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group III
Rated Current (40°) 20 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Insert PBT/PA66
Material Of Housing CuZn (Brass, nickel plated)
Cable Outlet 6-10 mm
Remark * *Earth sleeves with seals have to be ordered seperately
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
