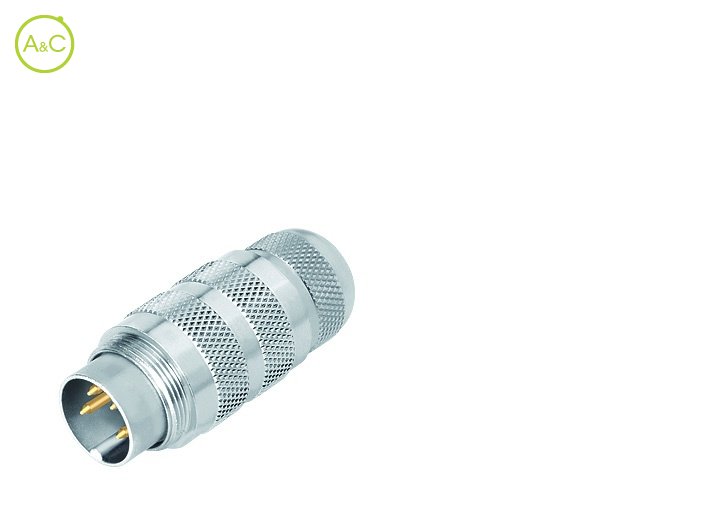

Male cable connector

  • Short version
  • UL-approval

Number Of Poles

  • 2
  • 3 DIN
  • 4
  • 5
  • 6 DIN
  • 7
  • 8 DIN
  • 12
  • 19
Article Number 99 5101 40 02

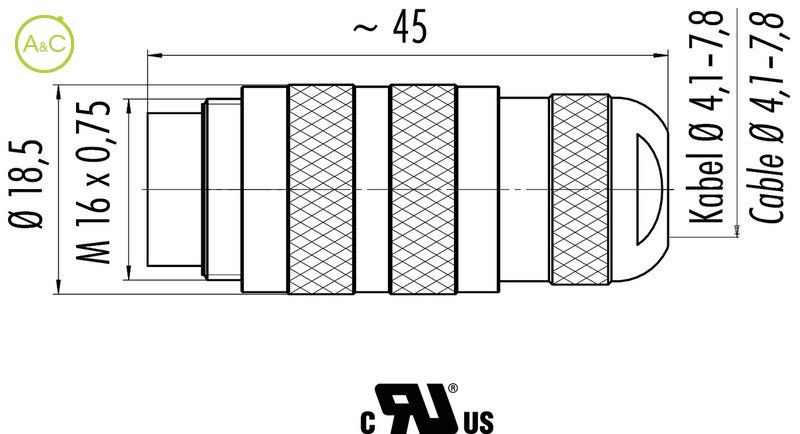

Connector Diameter 18.5 mm
Number Of Contacts 2 contacts
Connector Locking System Screw (M16)
Termination Solder
Wire Section 0.75 mm²
Protection Degree IP67
Mating Cycles >500 times
Upper Temperature +95 °C
Lower Temperature -40 °C
Rated Voltage 250 (32)
Rated Impuls Voltage 1500 V
Pollution Degree 1 (2)*
Overvoltage Categorie I (II)*
Material Group III
Rated Current (40°) 7 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PBT (UL 94 V-0)
Material Of Housing CuZn (Brass, nickel plated)
Cable Outlet 4-8 mm
Remark * *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V.
