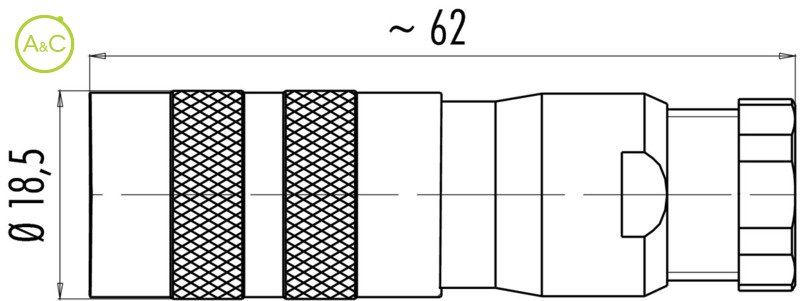

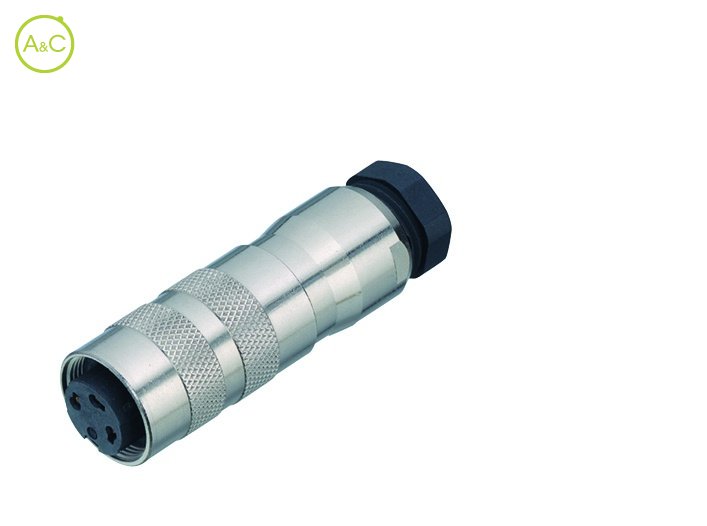

Female cable connector

  • With shielding ring, shieldable
  • UL-approval

Number Of Poles

  • 2
  • 3 DIN
  • 4
  • 5
  • 5 (Stereo)
  • 6 DIN
  • 7
  • 7 DIN
  • 8 DIN
  • 12
  • 14
  • 16
  • 19
  • 24
Article Number 99 5602 15 02 99 5602 19 02
Connector Diameter 18.5 mm 18.5 mm
Number Of Contacts 2 contacts 2 contacts
Connector Locking System Screw (M16) Screw (M16)
Termination Solder Solder
Wire Section 0.75 mm² 0.75 mm²
Protection Degree IP67 IP67
Mating Cycles >500 times >500 times
Upper Temperature +95 °C +95 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 250 (32) 250 (32)
Rated Impuls Voltage 1500 V 1500 V
Pollution Degree 1 (2)* 1 (2)*
Overvoltage Categorie I (II)* I (II)*
Material Group III III
Rated Current (40°) 7 A 7 A
Max. Contact Resistance 5 mΩ 3 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass)
Material Of Insert PBT (UL 94 V-0) PBT (UL 94 V-0)
Material Of Housing CuZn (Brass, nickel plated) CuZn (Brass, nickel plated)
Cable Outlet 6-8 mm 6-8 mm
Remark * *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V.
