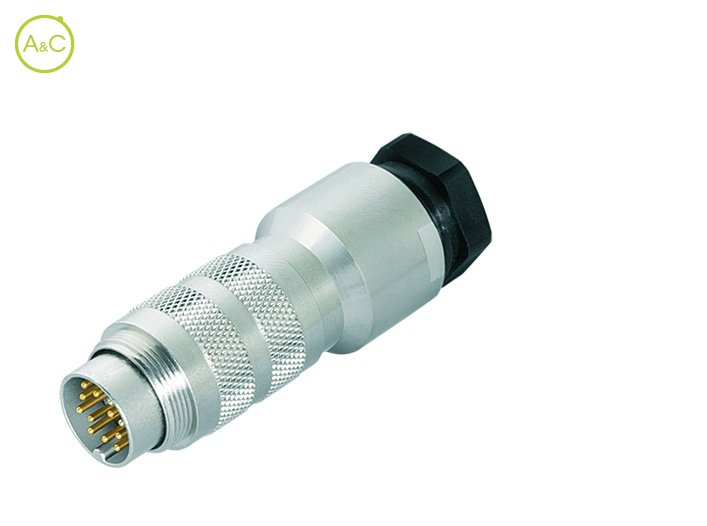

Male cable connector

  • With shielding ring, shieldable
  • UL-approval

Number Of Poles

  • 7
  • 7 DIN
  • 8
  • 12
  • 14
  • 16
  • 19
  • 24
Article Number 99 5825 15 07

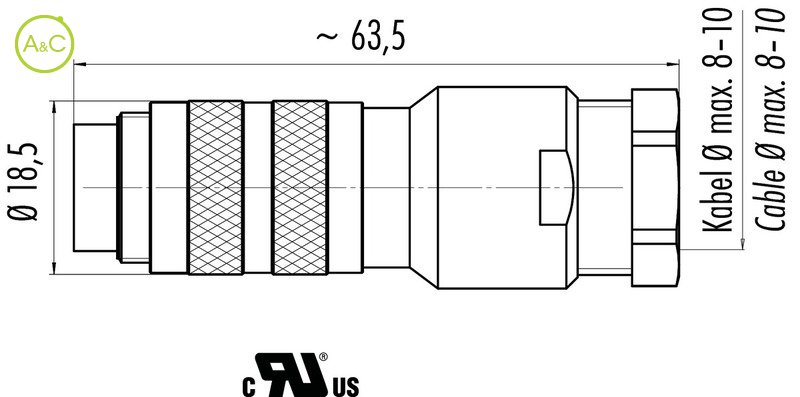

Connector Diameter 18.5 mm
Number Of Contacts 7 contacts
Connector Locking System Screw (M16)
Termination Solder
Wire Section 0.75 mm²
Protection Degree IP67
Mating Cycles >500 times
Upper Temperature +95 °C
Lower Temperature -40 °C
Rated Voltage 125 (32)
Rated Impuls Voltage 800 V
Pollution Degree 1 (2)*
Overvoltage Categorie I (II)*
Material Group III
Rated Current (40°) 5 A
Max. Contact Resistance 5 mΩ
Material Of Contact CuZn (Brass)
Material Of Insert PBT (UL 94 V-0)
Material Of Housing CuZn (Brass, nickel plated)
Cable Outlet 8-10 mm
Remark * *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V.
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
