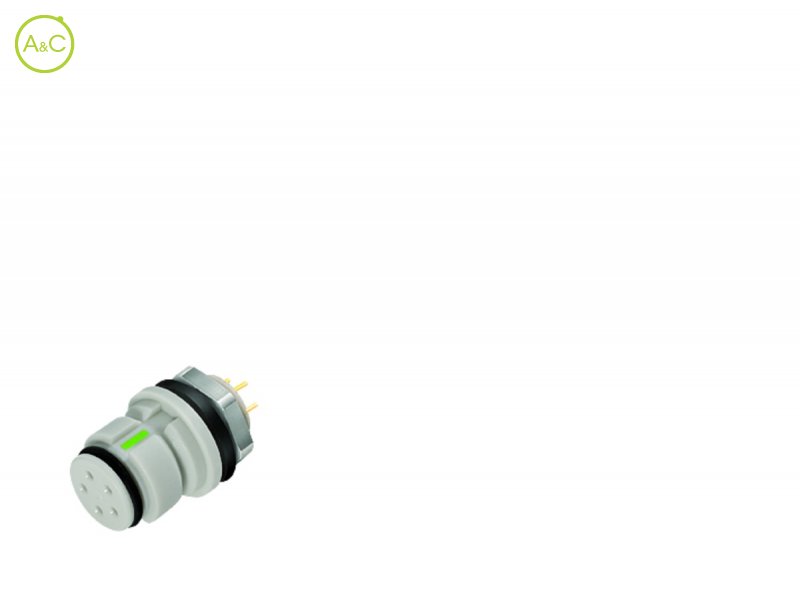

Female panel mount connector

  • With dip solder termination
  • Lightgrey

Number Of Poles

  • 3
  • 4
  • 5
  • 8
Article Number 99 9208 490 03

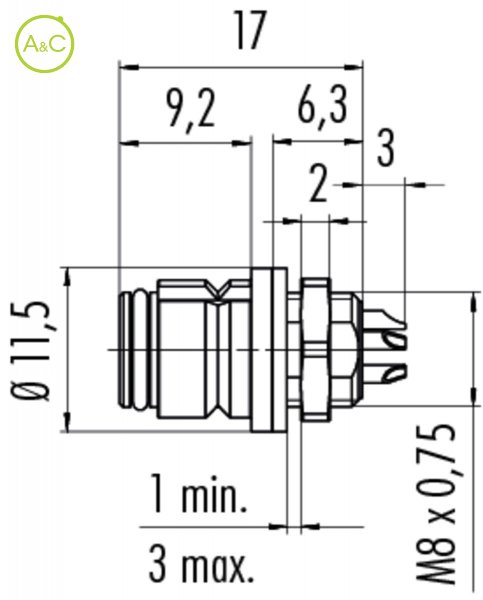

Connector Diameter 11.5 mm
Number Of Contacts 3 contacts
Connector Locking System Snap-in
Termination Dip solder
Protection Degree IP67
Upper Temperature +85 °C
Lower Temperature -25 °C
Rated Voltage 125
Rated Impuls Voltage 1500 V
Pollution Degree 2
Overvoltage Categorie II
Material Group II
Rated Current (40°) 3 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Insert PA (UL 94 V-0)
Material Of Housing PA (UL 94 V-0)
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
