Surface Mount Solid Pins

A1-250

A1-250

A1-250

A1-250

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Weitere Informationen über diese Marke:

Pin Length

0.250"
0.375"
0.421"
0.500"
0.625"
0.750"

Article Number	A1-250
Packaging	Loose

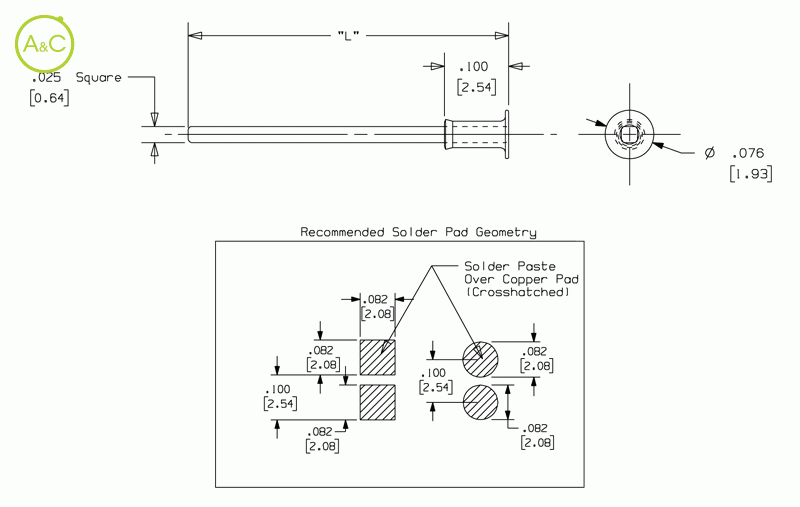

Dim 'l'	0.250" (6.35mm)
Pin Width	0.025" (0.64mm) Square
Standard Finish	100% Tin over Copper
Current Rating	8 amperes
Feeder System	Surf-Shooter SMT Loose Piece Feeder (Pin Shooter)
Datenblatt	Download Datenblatt

Article Number	A1-375
Packaging	Loose
Dim 'l'	0.375" (9.53mm)
Pin Width	0.025" (0.64mm) Square
Standard Finish	100% Tin over Copper
Current Rating	8 amperes
Feeder System	Surf-Shooter SMT Loose Piece Feeder (Pin Shooter)
Datenblatt	Download Datenblatt

Article Number	A1-421
Packaging	Loose
Dim 'l'	0.421" (10.69mm)
Pin Width	0.025" (0.64mm) Square
Standard Finish	100% Tin over Copper
Current Rating	8 amperes
Feeder System	Surf-Shooter SMT Loose Piece Feeder (Pin Shooter)
Datenblatt	Download Datenblatt

Article Number	A1-500
Packaging	Loose
Dim 'l'	0.500" (12.70mm)
Pin Width	0.025" (0.64mm) Square
Standard Finish	100% Tin over Copper
Current Rating	8 amperes
Feeder System	Surf-Shooter SMT Loose Piece Feeder (Pin Shooter)
Datenblatt	Download Datenblatt

Article Number	A1-625
Packaging	Loose
Dim 'l'	0.625" (15.88mm)
Pin Width	0.025" (0.64mm) Square
Standard Finish	100% Tin over Copper
Current Rating	8 amperes
Feeder System	Surf-Shooter SMT Loose Piece Feeder (Pin Shooter)
Datenblatt	Download Datenblatt

Article Number	A1-750
Packaging	Loose
Dim 'l'	0.750" (19.05mm)
Pin Width	0.025" (0.64mm) Square
Standard Finish	100% Tin over Copper
Current Rating	8 amperes
Feeder System	Surf-Shooter SMT Loose Piece Feeder (Pin Shooter)
Datenblatt	Download Datenblatt

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
