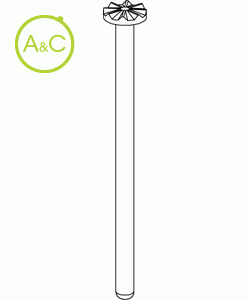

SMT Solid Pins

0.040" (1.02mm) pin width

A2-375-0

A2-375-0

A2-375-0

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Weitere Informationen über diese Marke:

Pin Length

0.375"
0.495"
0.532"
0.670"
0.680"

Article Number	A2-375-0
Packaging	Loose
Extra Description	0.040" (1.02mm) pin width

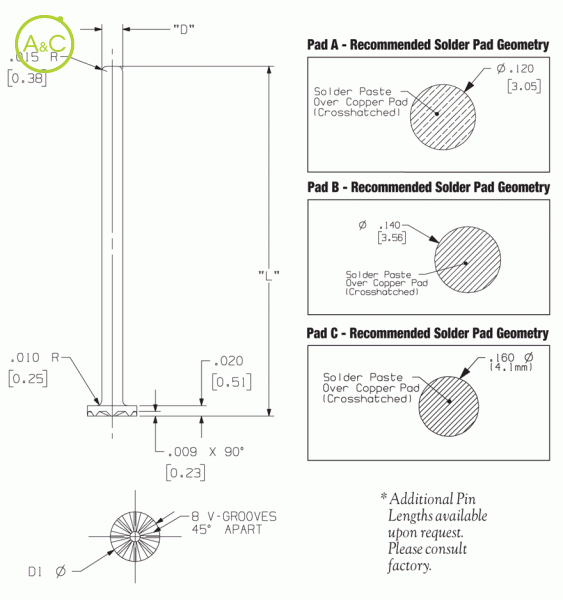

L*	0.375" (9.53mm)
D	0.040" (1.02mm)
D1	0.095" ±0.005" (2.41mm±0.127mm)
Current Rating	15 Amperes
Feeder System	Surf-Shooter SMT Loose Piece Feeder (Pin Shooter)
Pad	A
Datenblatt	Download Datenblatt

Article Number	A2-495-0
Packaging	Loose
Extra Description	0.040" (1.02mm) pin width
L*	0.495" (12.57mm)
D	0.040" (1.02mm)
D1	0.095" ±0.005" (2.41mm±0.127mm)
Current Rating	15 Amperes
Feeder System	Surf-Shooter SMT Loose Piece Feeder (Pin Shooter)
Pad	A
Datenblatt	Download Datenblatt

Article Number	A2-532-0
Packaging	Loose
Extra Description	0.040" (1.02mm) pin width
L*	0.532" (13.51mm)
D	0.040" (1.02mm)
D1	0.095" ±0.005" (2.41mm±0.127mm)
Current Rating	15 Amperes
Feeder System	Surf-Shooter SMT Loose Piece Feeder (Pin Shooter)
Pad	A
Datenblatt	Download Datenblatt

Article Number	A2-670-0
Packaging	Loose
Extra Description	0.040" (1.02mm) pin width
L*	0.670" (17.02mm)
D	0.040" (1.02mm)
D1	0.095" ±0.005" (2.41mm±0.127mm)
Current Rating	15 Amperes
Feeder System	Surf-Shooter SMT Loose Piece Feeder (Pin Shooter)
Pad	A
Datenblatt	Download Datenblatt

Article Number	A2-680-0
Packaging	Loose
Extra Description	0.040" (1.02mm) pin width
L*	0.680" (17.27mm)
D	0.040" (1.02mm)
D1	0.095" ±0.005" (2.41mm±0.127mm)
Current Rating	15 Amperes
Feeder System	Surf-Shooter SMT Loose Piece Feeder (Pin Shooter)
Pad	A
Datenblatt	Download Datenblatt

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
