Contact AWG 32 to 28

  • ACH CONNECTOR
Download Datenblatt

Applicable Wire

  • AWG 30 to 28
  • AWG 32 to 30
Article Number SACH-003G-P0.2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1.2mm Pitch Disconnectable Crimp Style (Wire to Board)
Applicable Wire Size 0.05 to 0.08 (AWG #30 to #28) mm²
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.20 mm
Rated Current (ac/dc) 2 (2 nd 3 circuits) 1.5 (4 circuits) A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

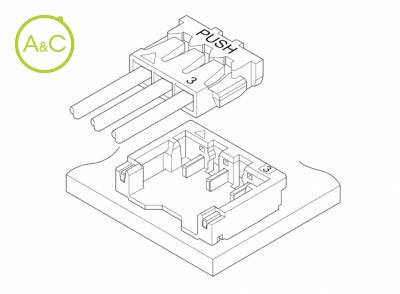

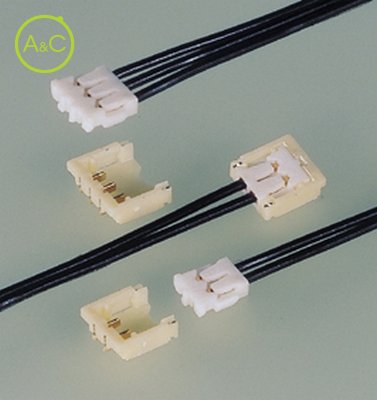

The ACH Series Wire to Board connector was originally designed for a DC power supply application and has a 2.0 Amp current rating for both the 2 and 3 circuits, using wire size 28 AWG. These low-profile connectors have a height of only 1.4mm (.055”) and a width of 4.3mm (.169”). Uniquely constructed, these 1.2mm (.047”) pitch, wire to board connectors feature a socket half that is mated with the header from the vertical direction, while the wires come out from the horizontal direction of the socket connector. The ultra compact, low profile design provides the flexibility for applications that need high performance connectors in tight spaces. Top entry but side feed type Wires come out from horizntal direction of connector. Low profile (Height: 1.4mm (.055") Socket is mated with header from vertical direction of connector. Excellent workability Connector for DC power supply In spite of compact and low profile type connector, rated current is 2A for both 2-circuit and 3-circuit with wire size AWG #28. Corresponding to sucking nozzle of pick and place machine A sucking area on bottom of inside header is available. Standards UL Recognized E60389 RoHS Compliant
