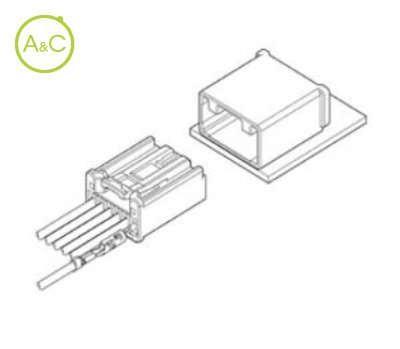

Male Connector

  • AIT-II CONNECTOR
Download Datenblatt

Number Of Poles

  • 2
  • 3
  • 6
  • 7
  • 10
  • 22
Article Number AIT2WSB-02A-1AK
Color Black
Number Of Contacts 2
Upper Temperature +105 °C
Lower Temperature -40 °C
General Description 2.54mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type Automotive
Pitch / Style 2.54 mm
Rated Current (ac/dc) 5 A
Rated Voltage (ac/dc) 14 V
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
0.64 unsealed low-profile connector series for use in a wide range of automotive applications. Variations There are multiple varieties of AIT-II Connectors which can satisfy your needs. RoHS Compliant
