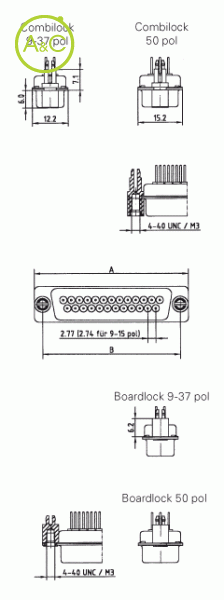

Filter connectors straight

Combilock, UNC 4-40 thread
With dip solder contacts

B 4 F 02 09 52 G.

B 4 F 02 09 52 G.

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Number Of Poles

9
15
25
37
50

Article Number	B4F 02 09 52 G.	B4F 02 09 62 G.
Number Of Contacts	9	9
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	100	100
Remark	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Remark ***	For the requested Thread type please replace the "4" (standard) at the beginning of the article no. By using 3 or 4	For the requested Thread type please replace the "4" (standard) at the beginning of the article no. By using 3 or 4
Insulation Resistance	1 MΩ	1 MΩ
Extra Information	Mounting lug distance spacer and threaded rivet in one part In one operation the connector is snapped into the printed circuit board, is exactly spaced and is fixed by an UNC 4-40 thread	Mounting lug distance spacer and threaded rivet in one part In one operation the connector is snapped into the printed circuit board, is exactly spaced and is fixed by an UNC 4-40 thread
Thread Type	3 = M3 4= UNC-4-40	3 = M3 4= UNC-4-40
Current Rating	Max. 5	Max. 5
Gender	Male	Female
Test Voltage U Eff	200	200
Quality Class*	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles
Capacitor Values****	01 = 2000 pF 02= 1000 pF 03= 500 pF 04= 250 pF 05= 120 pF 06= 43 pF 07= 22 pF 08= 15 pF 09 = 2 pF (available for non-filters pins) 10 = customized types	01 = 2000 pF 02= 1000 pF 03= 500 pF 04= 250 pF 05= 120 pF 06= 43 pF 07= 22 pF 08= 15 pF 09 = 2 pF (available for non-filters pins) 10 = customized types
Remark ****	For another capacitor value replace the 02 in the article number by the number 01,03,04,05,06,07,08,09 or 10	For another capacitor value replace the 02 in the article number by the number 01,03,04,05,06,07,08,09 or 10

Article Number	B4F 02 15 52 G.	B4F 02 15 62 G.
Number Of Contacts	15	15
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	100	100
Remark	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Remark ***	For the requested Thread type please replace the "4" (standard) at the beginning of the article no. By using 3 or 4	For the requested Thread type please replace the "4" (standard) at the beginning of the article no. By using 3 or 4
Insulation Resistance	1 MΩ	1 MΩ
Extra Information	Mounting lug distance spacer and threaded rivet in one part In one operation the connector is snapped into the printed circuit board, is exactly spaced and is fixed by an UNC 4-40 thread	Mounting lug distance spacer and threaded rivet in one part In one operation the connector is snapped into the printed circuit board, is exactly spaced and is fixed by an UNC 4-40 thread
Thread Type	3 = M3 4= UNC-4-40	3 = M3 4= UNC-4-40
Current Rating	Max. 5	Max. 5
Gender	Male	Female
Test Voltage U Eff	200	200
Quality Class*	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles
Capacitor Values****	01 = 2000 pF 02= 1000 pF 03= 500 pF 04= 250 pF 05= 120 pF 06= 43 pF 07= 22 pF 08= 15 pF 09 = 2 pF (available for non-filters pins) 10 = customized types	01 = 2000 pF 02= 1000 pF 03= 500 pF 04= 250 pF 05= 120 pF 06= 43 pF 07= 22 pF 08= 15 pF 09 = 2 pF (available for non-filters pins) 10 = customized types
Remark ****	For another capacitor value replace the 02 in the article number by the number 01,03,04,05,06,07,08,09 or 10	For another capacitor value replace the 02 in the article number by the number 01,03,04,05,06,07,08,09 or 10

Article Number	B4F 02 25 52 G.	B4F 02 25 62 G.
Number Of Contacts	25	25
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	100	100
Remark	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Remark ***	For the requested Thread type please replace the "4" (standard) at the beginning of the article no. By using 3 or 4	For the requested Thread type please replace the "4" (standard) at the beginning of the article no. By using 3 or 4
Insulation Resistance	1 MΩ	1 MΩ
Extra Information	Mounting lug distance spacer and threaded rivet in one part In one operation the connector is snapped into the printed circuit board, is exactly spaced and is fixed by an UNC 4-40 thread	Mounting lug distance spacer and threaded rivet in one part In one operation the connector is snapped into the printed circuit board, is exactly spaced and is fixed by an UNC 4-40 thread
Thread Type	3 = M3 4= UNC-4-40	3 = M3 4= UNC-4-40
Current Rating	Max. 5	Max. 5
Gender	Male	Female
Test Voltage U Eff	200	200
Quality Class*	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles
Capacitor Values****	01 = 2000 pF 02= 1000 pF 03= 500 pF 04= 250 pF 05= 120 pF 06= 43 pF 07= 22 pF 08= 15 pF 09 = 2 pF (available for non-filters pins) 10 = customized types	01 = 2000 pF 02= 1000 pF 03= 500 pF 04= 250 pF 05= 120 pF 06= 43 pF 07= 22 pF 08= 15 pF 09 = 2 pF (available for non-filters pins) 10 = customized types
Remark ****	For another capacitor value replace the 02 in the article number by the number 01,03,04,05,06,07,08,09 or 10	For another capacitor value replace the 02 in the article number by the number 01,03,04,05,06,07,08,09 or 10

Article Number	B4F 02 37 52 G.	B4F 02 37 62 G.
Number Of Contacts	37	37
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	100	100
Remark	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Remark ***	For the requested Thread type please replace the "4" (standard) at the beginning of the article no. By using 3 or 4	For the requested Thread type please replace the "4" (standard) at the beginning of the article no. By using 3 or 4
Insulation Resistance	1 MΩ	1 MΩ
Extra Information	Mounting lug distance spacer and threaded rivet in one part In one operation the connector is snapped into the printed circuit board, is exactly spaced and is fixed by an UNC 4-40 thread	Mounting lug distance spacer and threaded rivet in one part In one operation the connector is snapped into the printed circuit board, is exactly spaced and is fixed by an UNC 4-40 thread
Thread Type	3 = M3 4= UNC-4-40	3 = M3 4= UNC-4-40
Current Rating	Max. 5	Max. 5
Gender	Male	Female
Test Voltage U Eff	200	200
Quality Class*	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles
Capacitor Values****	01 = 2000 pF 02= 1000 pF 03= 500 pF 04= 250 pF 05= 120 pF 06= 43 pF 07= 22 pF 08= 15 pF 09 = 2 pF (available for non-filters pins) 10 = customized types	01 = 2000 pF 02= 1000 pF 03= 500 pF 04= 250 pF 05= 120 pF 06= 43 pF 07= 22 pF 08= 15 pF 09 = 2 pF (available for non-filters pins) 10 = customized types
Remark ****	For another capacitor value replace the 02 in the article number by the number 01,03,04,05,06,07,08,09 or 10	For another capacitor value replace the 02 in the article number by the number 01,03,04,05,06,07,08,09 or 10

Article Number	B4F 02 50 52 G.	B4F 02 50 62 G.
Number Of Contacts	50	50
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	100	100
Remark	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Remark ***	For the requested Thread type please replace the "4" (standard) at the beginning of the article no. By using 3 or 4	For the requested Thread type please replace the "4" (standard) at the beginning of the article no. By using 3 or 4
Insulation Resistance	1 MΩ	1 MΩ
Extra Information	Mounting lug distance spacer and threaded rivet in one part In one operation the connector is snapped into the printed circuit board, is exactly spaced and is fixed by an UNC 4-40 thread	Mounting lug distance spacer and threaded rivet in one part In one operation the connector is snapped into the printed circuit board, is exactly spaced and is fixed by an UNC 4-40 thread
Thread Type	3 = M3 4= UNC-4-40	3 = M3 4= UNC-4-40
Current Rating	Max. 5	Max. 5
Gender	Male	Female
Test Voltage U Eff	200	200
Quality Class*	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles
Capacitor Values****	01 = 2000 pF 02= 1000 pF 03= 500 pF 04= 250 pF 05= 120 pF 06= 43 pF 07= 22 pF 08= 15 pF 09 = 2 pF (available for non-filters pins) 10 = customized types	01 = 2000 pF 02= 1000 pF 03= 500 pF 04= 250 pF 05= 120 pF 06= 43 pF 07= 22 pF 08= 15 pF 09 = 2 pF (available for non-filters pins) 10 = customized types
Remark ****	For another capacitor value replace the 02 in the article number by the number 01,03,04,05,06,07,08,09 or 10	For another capacitor value replace the 02 in the article number by the number 01,03,04,05,06,07,08,09 or 10

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
