Top Entry Shrouded Header THT Glass-filled PBT

  • PNI CONNECTOR
Download Datenblatt

Number Of Poles

  • 2
  • 3
  • 4
  • 5
Article Number B02B-PNISK-1
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 2.0mm Pitch Disconnectable Crimp Style
Connection Type Printed Circuit Board Connectors
Pitch / Style 2.00 mm
Rated Current (ac/dc) 3 A
Rated Voltage (ac/dc) 100 V
Pcb Mount Style Through-hole Technology (THT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

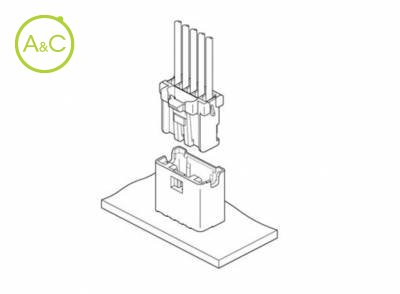

This is a 2.0mm pitch wire to board connector, having incomplete mating prevention mechanism. Inertial lock structure Finger-friendly design Secure locking structure RoHS Compliant
