Shrouded Header THT

  • CS/CSR CONNECTOR
Download Datenblatt

Number Of Poles

  • 3
  • 5
  • 7
  • 9
  • 11
  • 13
  • 15
  • 17
  • 19
  • 21
  • 23
  • 25
  • 27
  • 29
  • 31
Article Number B03B-CSRK
Number Of Contacts 3
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1.0mm pitch Disconnectable IDC
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.00 mm
Rated Current (ac/dc) 1.8 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Through-hole Technology (THT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

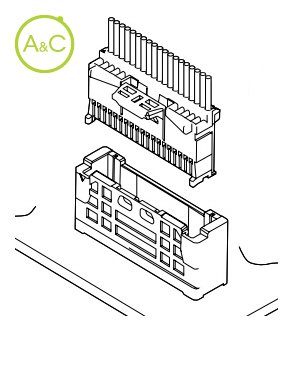

This is a 1.0mm pitch insulation displacement connector with the secure locking structure to prevent coming off the connector and incomplete mating. 1.8A in rated current was realized by using AWG#27. Secure locking structure Realization of multi-circuits by low insertion force Countermeasure for unexpected prying insertion EC directive 2002/95/EC (the RoHS Directive) - Compliant
