Top Entry Shrouded Header THT Boss

  • XAD CONNECTOR
Download Datenblatt

Number Of Poles

  • 8
  • 10
  • 12
  • 14
  • 16
  • 18
  • 20
  • 22
  • 24
  • 26
  • 28
  • 30
  • 32
  • 34
  • 36
  • 40
Article Number B08B-XADSS-N-A
Number Of Contacts 8
Upper Temperature +85 °C
Lower Temperature -25 °C

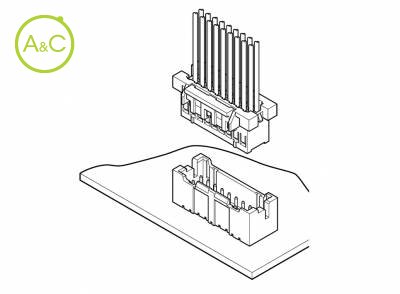

General Description 2.5mm Pitch Disconnectable Crimp Style (Wire to Board)
Connection Type Printed Circuit Board Connectors
Pitch / Style 2.50 mm
Rated Current (ac/dc) 3 A
Rated Voltage (ac/dc) 250 V
Pcb Mount Style Through-hole Technology (THT)
Remark Secure locking device
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Header wafer is made of solder crack preventive material, glass-filled PA66 nylon. Double-row construction. Secure locking device prevents accidental diSConnection. Locking device The housing has a locking device which securely mates with the header, preventing accidental diSConnection resulting from external forces such as the routing of wires during assembly process or vibration. Solder crack preventive material Header wafer is made of glass-filled PA66 nylon thus effective against solder cracking. Polarizing boss Headers with polarizing bosses are also available. Mis-insertion preventive design Housing ribs prevent mis-insertion of the housing into the header. Standards UL Recognized E60389 CSA Certified LR20812 TUV Certified R9851219 RoHS Compliant
