Top Entry Header (THT)
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
JST
Number Of Poles
- 7
| Article Number | B7P-TB-5 |
| Number Of Contacts | 7 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

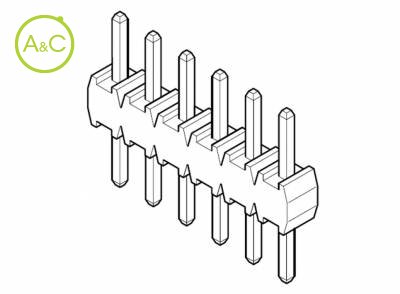

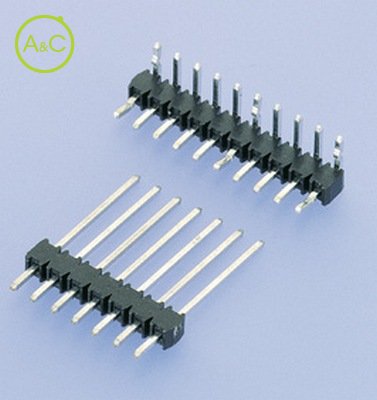

This header, measuring 2.5mm (.098") in pitch, can be easily cut into any required length.
Thus, only one size needs to be stocked for prototyping and preproduction purposes.
Standards
UL Recognized E60389
RoHS Compliant
