Top Entry Shrouded Header THT High box type
- PH CONNECTOR
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
JST
Number Of Poles
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
| Article Number | BH2B-PH |
| Number Of Contacts | 2 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | BH3B-PH |
| Number Of Contacts | 3 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | BH4B-PH |
| Number Of Contacts | 4 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | BH5B-PH |
| Number Of Contacts | 5 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | BH6B-PH |
| Number Of Contacts | 6 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | BH7B-PH |
| Number Of Contacts | 7 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | BH8B-PH |
| Number Of Contacts | 8 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | BH9B-PH |
| Number Of Contacts | 9 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | BH10B-PH |
| Number Of Contacts | 10 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | BH11B-PH |
| Number Of Contacts | 11 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | BH12B-PH |
| Number Of Contacts | 12 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | BH13B-PH |
| Number Of Contacts | 13 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Through-hole Technology (THT) |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

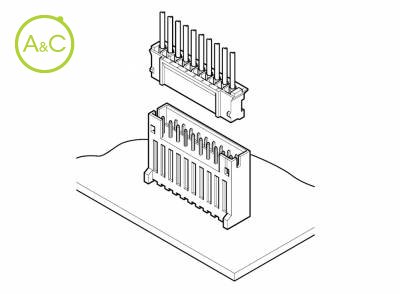

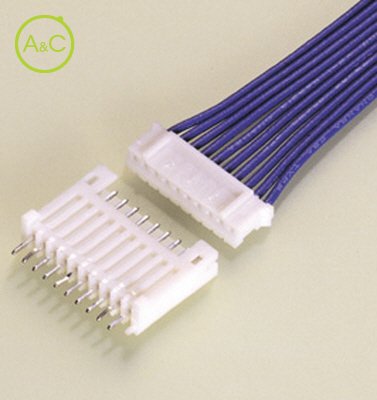

PH connector high-box type, with 17mm (.669") mounting height and with 4.5mm (.177") thickness.
The header is designed to accept the PH crimp style or the KR insulation displacement connector receptacles.
Interchangeability
Designed to accept either PH or KR mating sockets.
Standards
UL Recognized E60389
CSA Certified LR20812
TUV Certified R75087
RoHS Compliant
