Top Entry Shrouded Header THT High box type

  • XH CONNECTOR
Download Datenblatt

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
Article Number BH10B-XH-2
Number Of Contacts 10
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 2.5mm Pitch Disconnectable Crimp Style
Connection Type Printed Circuit Board Connectors
Pitch / Style 2.50 mm
Rated Current (ac/dc) 3 A
Rated Voltage (ac/dc) 250 V
Pcb Mount Style Through-hole Technology (THT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

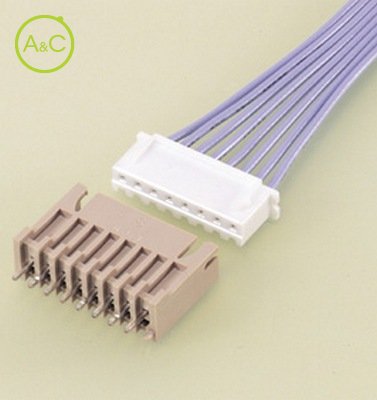

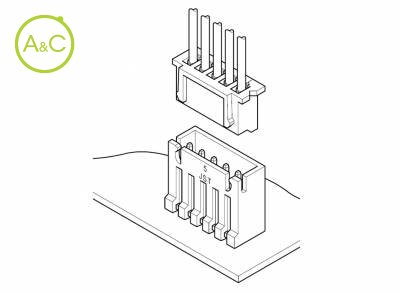

The header is tall and fully shrouded so as to prevent the resin used to coat the PC boards coming into contact with the mating pins. Designed for use specifically with resin coated ("potted") PC boards. The header is designed to accept XH mating receptacles. Header for 2.5mm (.098") pitch XH connector for use specifically with resin coated ("potted") PC boards. This header is tall and fully shrouded so as to prevent the resin used to coat the PC board from coming into contact with the mating pins. Interchangeability Designed to accept XH mating receptacles. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
