Socket Housing

  • BHM CONNECTOR
Download Datenblatt

Number Of Poles

  • 2
  • 3
  • 4
  • 5
Article Number BHR-02VS-1
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 4mm/8mm Pitch Disconnectable Crimp Style
Connection Type Wire to Wire Connectors
Pitch / Style 4.0/8.0 mm
Rated Current (ac/dc) 1.0 A
Rated Voltage (ac/dc) 600 V
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

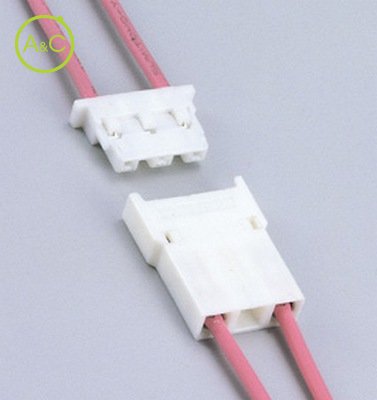

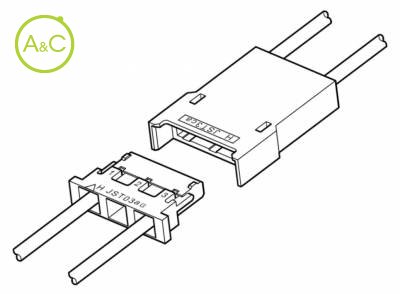

Wire-to-wire version connectors, designed for liquid crystal display back light lamps. Contact lances Contacts are secured in the housing by their spring action, thus fully shrouded. This helps improve the withstanding voltage. Box shaped housing Box shaped construction of the housing prevents distortion during mating and unmating of the housings. Withstanding voltage is also considered. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
