Socket contact AWG 28 to 24

  • BHS CONNECTOR

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Applicable Wire

  • AWG 28 to 24
Article Number SBHS-002T-P0.5A
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 3.5mm Pitch Disconnectable Crimp Style (Wire to Wire)
Applicable Wire Size 0.08 to 0.22 (AWG #28 to #24) mm²
Connection Type Wire to Wire Connectors
Pitch / Style 3.50 mm
Rated Current (ac/dc) 1.0 A
Rated Voltage (ac/dc) 1,4 V
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

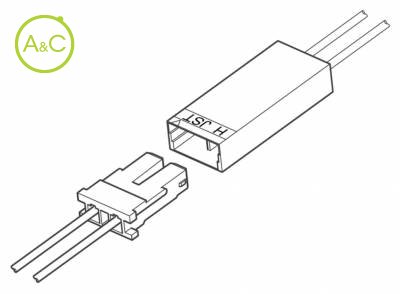

Wire-to-wire version connectors, designed for connecting liquid crystal display back light lamp to their starters. Compact and applicable to high voltage The BHS connector is more compact than JST's BHM connector, yet applicable to the high voltage, with the contact lance mechanism. Adopt wide large for socket contact In order to correspond to miniaturization and high voltage, wide large for socket contact is adopted. Standards UL Recognized E60389 CSA Certified LR20812 Wire to Board Version See link; https://www.jst.co.uk/productSeries.php?pid=171&cat=30 RoHS Compliant
