Top Entry Shrouded Header SMT

  • SFD CONNECTOR
Download Datenblatt

Number Of Poles

  • 10
Article Number BM10B-SFDH (HF)
Number Of Contacts 10
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1.1mm Pitch Disconnectable Crimp Style
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.1 mm
Rated Current (ac/dc) 1.0 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT)
Remark Secure locking device
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

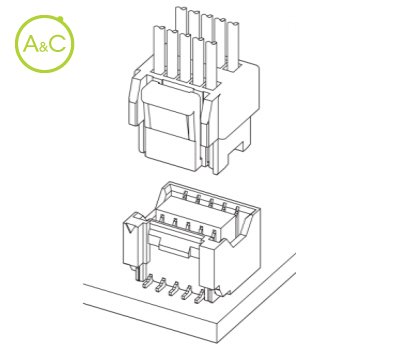

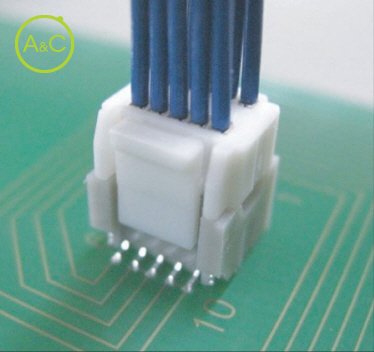

JST introduces the new SFD connector series, this LED backlight power supply surface mount connector is a crimp style wire to board connector that has been primarily designed and developed for LCD televisions. This 10 position connector has a secure locking feature and is available in embossed tape reel packaging to enable high speed processing. Conforming to the RoHS legislation, the housing and header are manufactured using halogen free materials. Secure lock Halogen free EC directive 2002/95/EC (the RoHS Directive) - Compliant
