Dual-row unit for Wire-to-Wire connection

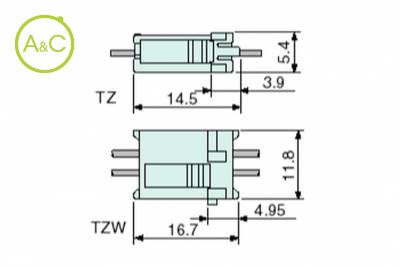

  • TZ/TZW CONNECTOR
Download Datenblatt

Number Of Poles

  • 16
  • 18
  • 20
  • 22
  • 24
  • 26
  • 28
  • 30
  • 32
  • 34
  • 36
  • 38
  • 40
Article Number BU16P-TZW-S
Number Of Contacts 16
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1.5mm Pitch Unit for Wire-to-Wire Connection
Connection Type Wire to Wire Connectors
Pitch / Style 1.50 mm
Rated Current (ac/dc) 2 A
Rated Voltage (ac/dc) 100 V
Pcb Mount Style Surface Mount Technology (SMT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

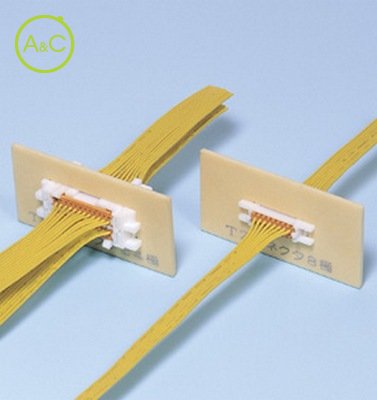

Based upon the 1.5mm (.059") pitch CZ connectors, the CZ family connectors have been expanded to meet the requirements of high density packaging. The CZW connector holder allows dual row wire-to-board connection using the CZ receptacles, while the TZ (single-row) or TZW (dual-row) allows wire-to-wire connection, also using the CZ receptacles. TZ/TZW connector The TZ connector is applicable to single-row connection, while the TZW connector is for dual-row connection. Applicable to wide range of panel thickness The design of the panel lock part does not allow the wires to be caught there before mounting on the panel. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
