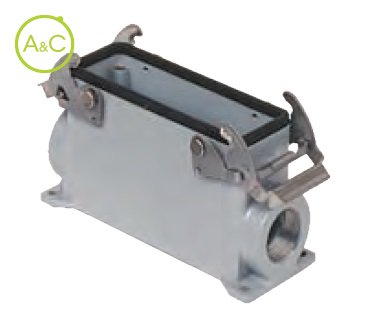

Surface mounting housing, high construction

  • With 2 levers in stainless steel
  • Aluminium, PG entry
Download Datenblatt
  • General
Article Number C7AP 16.21
Protection Degree IP67
Material Housing Aluminium
Height 77 mm
Length 117
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 40 P + PE; CDD 72 P + PE; CDS 27 P + PE; CSH 16 P + PE; CNE-CSE 16 P + PE; CCE 16 P + PE; CSS 16 P + PE; CQE 32 P + PE; CQEE 40 P + PE; CMCE-CMSH 6+2 (aux) P + PE; CP 6 P + PE; CX 6/36 and 12/2 P + PE; CX 4/0 and 4/2 P + PE; Mixo 4 modules; CDSH 27 P + PE; CX 6+12P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 57 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
