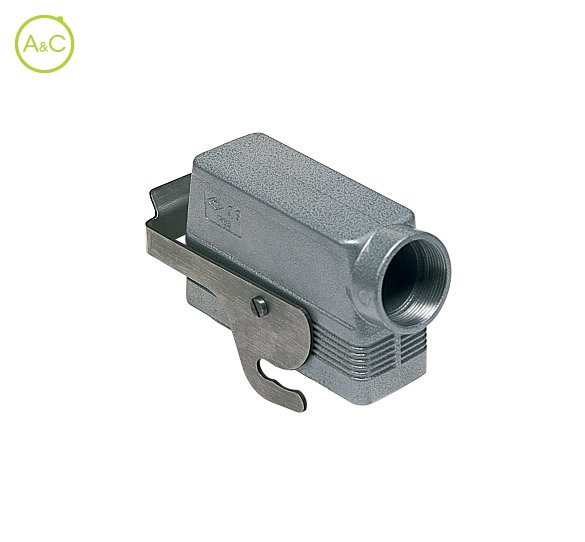

Hoods with central lever, high construction

Side entry
Aluminium, PG entry

CAO 06 YX21

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Entry

1xPG21
1xPG29

Article Number	CAO 06 YX21
Protection Degree	IP65
Material Housing	Aluminium
Height	72 mm
Length	60
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism	Central clamp
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	43 mm

Article Number	CAO 06 YX29
Protection Degree	IP65
Material Housing	Aluminium
Height	72 mm
Length	60
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism	Central clamp
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	43 mm

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
