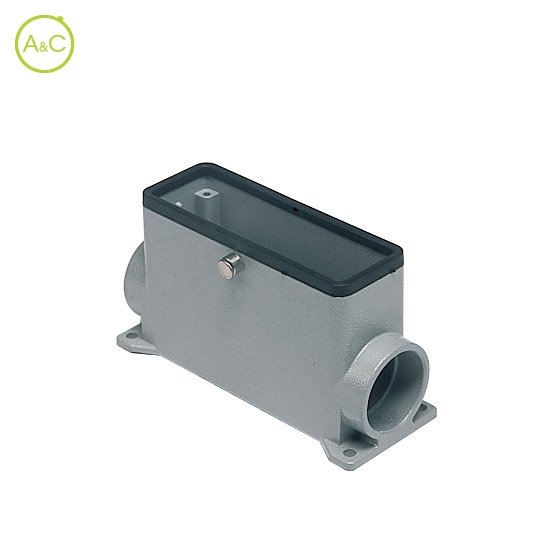

Surface mounting housings, high construction

  • With two entries for central lever, with pegs
  • Aluminium, 2xPG29
Download Datenblatt
  • General
Article Number CAP 16 YC229
Protection Degree IP65
Material Housing Aluminium
Height 81 mm
Length 117
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 40 P + PE; CDD 72 P + PE; CDS 27 P + PE; CSH 16 P + PE; CNE-CSE 16 P + PE; CCE 16 P + PE; CSS 16 P + PE; CQE 32 P + PE; CQEE 40 P + PE; CMCE-CMSH 6+2 (aux) P + PE; CP 6 P + PE; CX 6/36 and 12/2 P + PE; CX 4/0 and 4/2 P + PE; Mixo 4 modules; CDHS 27 P + PE; CX 6+12 P + PE
Locking Mechanism Central clamp
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Two-sided
Width 57 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
