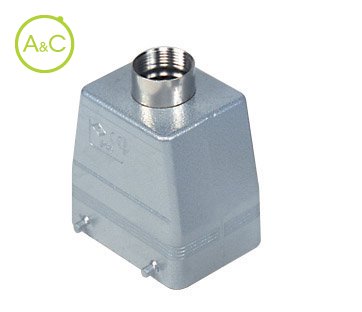

Hoods with 4 pegs, high construction

  • Top entry
  • Aluminium, PG entry
Download Datenblatt

Entry

  • 1xPG21
  • 1xPG29
Article Number CAV 50.21
Protection Degree IP66
Material Housing Aluminium
Height 90.5 mm
Length 82
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 50 P + PE; CDD 76 P + PE; CSAH 32 P + PE; CDA 32 P + PE; CDC 32 P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 56 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Zubehör
CHC 50 G
Covers with 2 levers
