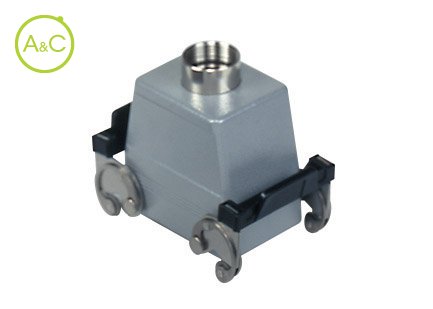

Hoods with 2 levers, high construction

Top entry
Aluminium, PG entry

CAV 50 X

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Entry

1xPG21
1xPG29

Article Number	CAV 50 X*
Protection Degree	IP66
Material Housing	Aluminium
Height	92 mm
Remark	May be combined with enclosures: CHI 50 CS; CHP 50 CS; MHP 50 CS
Length	82
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 50 P + PE; CDD 76 P + PE; CSAH 32 P + PE; CDA 32 P + PE; CDC 32 P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Top entry
Width	71 mm

Article Number	CAV 50 X29*
Protection Degree	IP66
Material Housing	Aluminium
Height	92 mm
Remark	May be combined with enclosures: CHI 50 CS; CHP 50 CS; MHP 50 CS
Length	82
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 50 P + PE; CDD 76 P + PE; CSAH 32 P + PE; CDA 32 P + PE; CDC 32 P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Top entry
Width	71 mm

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

Zubehör

Covers with 4 pegs

Covers with 4 pegs
