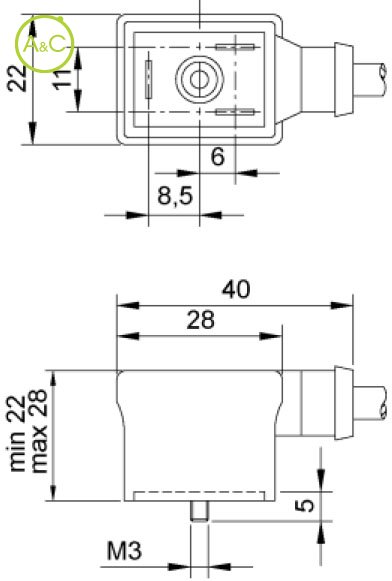

Style B-ind rectangular connector

Red Led + diode

CE - CE11 24A3R

CE - CE11 24A3R

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Housing Material

PUR
TPR

Article Number	CE13 24A3R 414 3000 0	CE13 24A8R 414 3000 0
Protection Degree	IP65*	IP65*
Upper Temperature	+70 °C	+70 °C
Lower Temperature	-40 °C	-40 °C
Contact Type	Fork	Fork
Circuits	Red Led + diode	Red Led + diode
Housing Oil Resistance	Very good	Very good
Housing Hardness	90 shore A	90 shore A
Other Characteristics	M3 central screw material: zinc plated iron	M3 central screw material: zinc plated iron
Voltage Vdc	10 to 50	70 to 250
Max. Currrent	10 A @40°C	10 A @40°C
Clamping Voltage	-1 V	-1 V
Housing Colour	Transparent	Transparent
Remark	The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward	The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward

Article Number	CE11 24A3R 414 3000 0	CE11 24A8R 414 3000 0
Protection Degree	IP65*	IP65*
Upper Temperature	+70 °C	+70 °C
Lower Temperature	-40 °C	-40 °C
Contact Type	Fork	Fork
Circuits	Red Led + diode	Red Led + diode
Housing Oil Resistance	Occasional contact	Occasional contact
Housing Hardness	73 shore A	73 shore A
Other Characteristics	M3 central screw material: zinc plated iron	M3 central screw material: zinc plated iron
Voltage Vdc	10 to 50	70 to 250
Max. Currrent	10 A @40°C	10 A @40°C
Clamping Voltage	-1 V	-1 V
Housing Colour	Black	Black
Remark	The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward	The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
