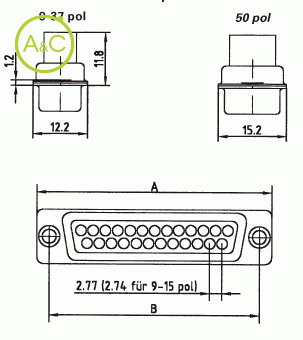

Crimp connectors DIN 41652 part

  • Rear side threaded rivet (2,8mm) UNC 4-40 or M3
  • With stamped or machined contacts
Download Datenblatt

Number Of Poles

  • 9
  • 15
  • 25
  • 37
  • 50

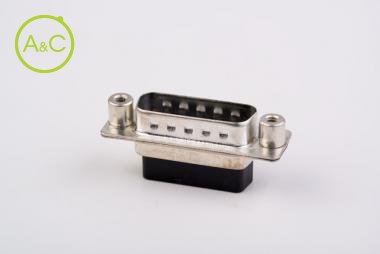

Article Number CG42DT09P CG42T09S
Number Of Contacts 9 9
Upper Temperature + 125 °C + 125 °C
Lower Temperature -55 °C -55 °C
Test Voltage 1 V ~ 1 V ~
Insulation Resistance 1010 MΩ 1010 MΩ
Extra Information Fully compatible with all current market standard Insulator material flame resistant Fully compatible with all current market standard Insulator material flame resistant
Current Rating 5 5
Contact Resistance ≤ 10 m ≤ 10 m
Gender Male Female
Insulator Material Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell Steel, tin-plated Steel, tin-plated
Mating And Unimating Force 0.3 - 0.7 0.3 - 0.7
Air And Creepage Distance ≥ 0.9 mm, VDE 0110 rated ≥ 0.9 mm, VDE 0110 rated
Termination Type Crimp 0.032-0.56 mm² Crimp 0.032-0.56 mm²
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
