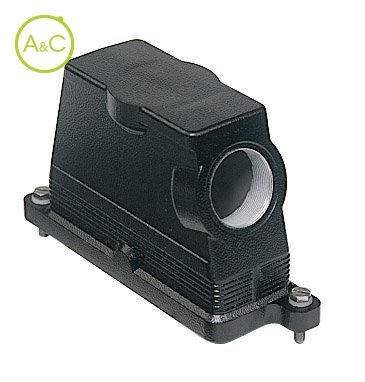

Hoods wtih side entry, Bayonet locking

Aluminium
PG entry

CGO 06.16 B

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Entry

1xPG16
1xPG21
1xPG29

Article Number	CGO 06.16 B
Protection Degree	IP68
Material Housing	Aluminium
Height	101 mm
Length	133
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism	Bayonet
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	58 mm

Article Number	CGO 06.21 B
Protection Degree	IP68
Material Housing	Aluminium
Height	101 mm
Length	133
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism	Bayonet
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	58 mm

Article Number	CGO 06.29 B
Protection Degree	IP68
Material Housing	Aluminium
Height	101 mm
Length	133
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism	Bayonet
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	58 mm

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
