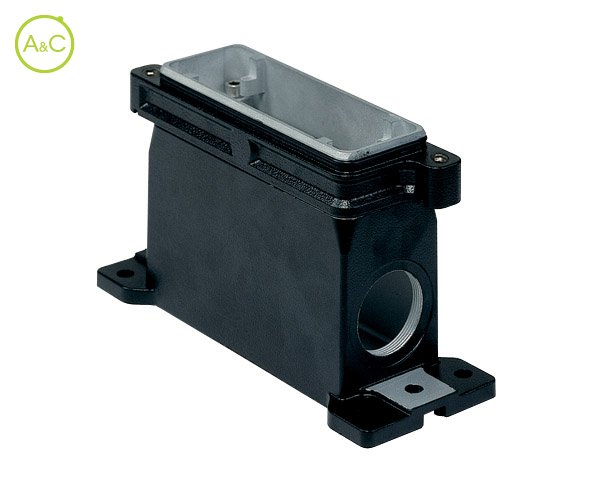

Surface mounting housings, screw locking

  • Aluminium
  • 1xPG29
Download Datenblatt
  • General
Article Number CGP 06.29
Protection Degree IP68
Material Housing Aluminium
Height 110 mm
Length 156
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism Screw
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 60 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Zubehör
CGC 06
Cover for Screw locking
