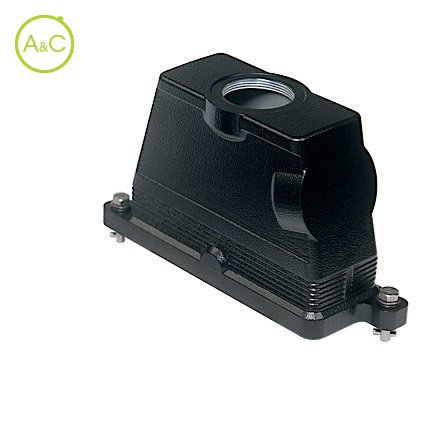

Hoods with top entry, Bayonet locking

  • Aluminium
  • PG entry
Download Datenblatt

Entry

  • 1xPG21
  • 1xPG29
  • 1xPG36
  • 2xPG21
Article Number CGV 16.21 B
Protection Degree IP68
Material Housing Aluminium
Height 111 mm
Length 166
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 40 P + PE; CDD 72 P + PE; CDS 27 P + PE; CSH 16 P + PE; CNE-CSE 16 P + PE; CCE 16 P + PE; CSS 16 P + PE; CQE 32 P + PE; CQEE 40 P + PE; CMCE-CMSH 6+2 (aux) P + PE; CP 6 P + PE; CX 6/36 and 12/2 P + PE; CX 4/0 and 4/2 P + PE; Mixo 4 modules; CDHS 27 P + PE; CX 6+12 P + PE
Locking Mechanism Bayonet
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 58 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
