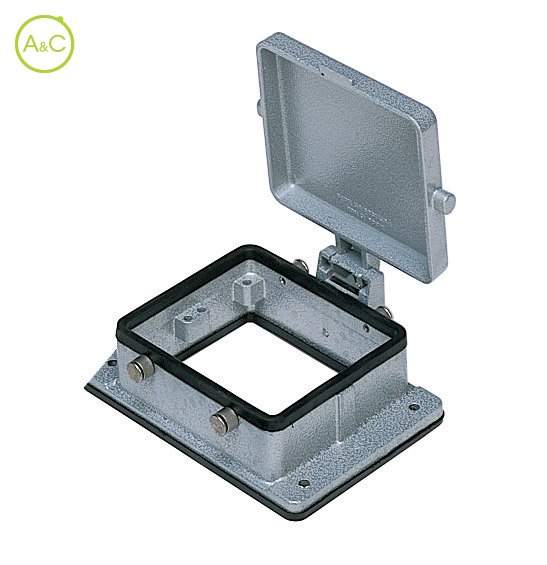

Bulkhead mounting housings

  • With 4 pegs and cover
  • Aluminium
Download Datenblatt
  • General
Article Number CHI 32 CS*
Protection Degree IP65
Material Housing Aluminium
Height 35 mm
Remark May be combined with enclosures: CHO 32 X;CHV 32 X;CFO 32 X;CFV 32 X;MHO 32 X;MHV 32 X;MFO 32X;MFV 32 X
Length 126
Extra Information Corrosion resistant
UV resistant
With hinged lid
With interlocking device
Coating Housing With powder coating
Required Inserts CD 80P+PE; CDD 144P+PE; CDS 54P+PE; CSH 32P+PE; CNE-CSE 32P+PE; CCE 32P+PE; CSS 32P+PE; CTSE 32P+PE; CQE 64P+PE; CMCE 12+4(aux)PE; CME 12+4(aux)P+PE; CMSH 12+4(aux)P+PE; CP 12P+PE; MIXO 4+4 modules; CDHS 54 P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Below
Width 92 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
