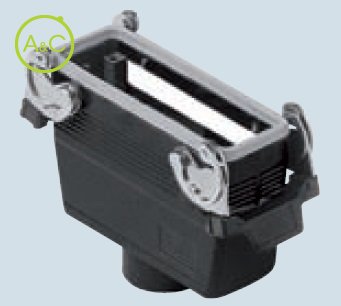

Hoods with levers and gasket, high construction

  • Top entry
  • Aluminium, 1xPG36
Download Datenblatt
  • General
Article Number CHVW 24 G
Protection Degree IP66
Material Housing Aluminium
Height 73.5 mm
Length 120
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 64P + PE; CDD 108 P + PE; CDS 42P + PE; CSH 24P + PE; CNE-CSE 24P + PE; CCE 24P + PE; CSS 24P + PE; CQE 46P + PE; CQEE 64P + PE; CME 10+2 (aux)P + PE; CMCE 10+2 (aux) + PE; CMSH 10+2 (aux) + PE; CMCE 16+2 (aux)P + PE; CME 16+2 (aux)P + PE; CX 4/8 and 6/6P + PE; MIXO 6 modules; CDSH 42 P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 59 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
