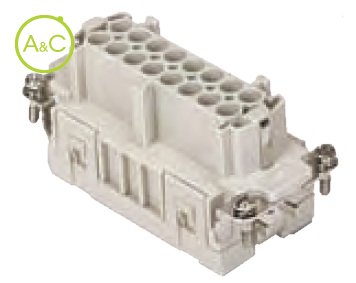

Inserts, 6+2(aux)P + PE, crimp connections

  • Female inserts for female contacts
Download Datenblatt
  • General
Article Number CMCEF 06
Pollution Degree 3
Number Of Poles 6
Connection Type Crimp connection
Contact Type Female
Required Crimp Contacts CCFA 0.3, CCFA 0.5, CCFA 0.7, CCFA 1.0, CCFA 1.5, CCFA 2.5, CCFA 3.0, CCFA 4.0, CCFD 0.3, CCFD 0.5, CCFD 0.7, CCFD 1.0, CCFD 1.5, CCFD 2.5, CCFD 3.0, CCFD 4.0, CCFC 0.3, CCFC 0.5, CCFF 0.3, CCFF 0.5, CCF2D 0.3, CCF2D 0.5, CCF2D 0.7, CCF2D 1.0, CCF2D 1.5, CCF2D 2.5, CCF2D 3.0, CCF2D 4.0, CCFJD 0.3, CCFJD 0.5, CCFJD 0.7, CCFJD 1.0, CCFJD 1.5, CCFJD 2.5, CCFJD 3.0, CCFJD 4.0
Extra Information Contact insert without contacts
Ambient Lower Temperature -40 °C
Ambient Upper Temperature 125 °C
Required Housing C-type size 77.27
C7 size 77.27
Simplex size 77.27
V-type size 77.27
BIG size 77.27
T-type size 77.27
T-type/W size 77.27
T-type/H size 77.27
T-type/C size 77.27
W-type size 77.27
EMC size 77.27
Central Lever size 77.27
High protection IP68
LS-type size 77.27
COB size 77.27
Diameter Male Contact 2.5 mm
Inflammability Class Of Insulation Material Acc. With Ul94 V0
Material Insert Thermoplastic
Max. Rated Current 16 A
Nominal Rated Voltage 830 V
Over Voltage Category III
Rated Surge Voltage 8 kV
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Zubehör
CR VNTG
Screws for second earth terminal
CR 20*
Single code pins for 6 codings
CR 20 D*
Single code pins for 6 codings
CRM*
Male double coding and guide pins, for 16 codes
CRM D*
Male double coding and guide pins, for 16 codes
CRF*
Female double coding and guide pins, for 16 codes
CRF D*
Female double coding and guide pins, for 16 codes
CRM
Male coding and guide pin, for 72 codes
CRM D
Male coding and guide pin, for 72 codes
CRF
Female coding and guide pin, for 72 codes
CRF D
Female coding and guide pin, for 72 codes
CR 72
Single coding and guide pin, for 72 codes
CR 72 D
Single coding and guide pin, for 72 codes
CR CPQ*
Plain coding pin for CDC, CQ,CQE,CCE,CMCE and MIXO 16A inserts
