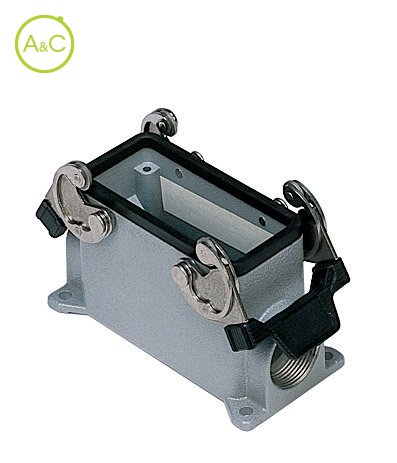

Surface mounting housings with 2 levers

  • Aluminium
  • PG entry
Download Datenblatt

Entry

  • 1xPG21
  • 2xPG21
Article Number CMP 06
Protection Degree IP66
Material Housing Aluminium
Height 63 mm
Length 117
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CME 6+2 (aux) P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 57 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Zubehör
CHC 16
Covers with 4 pegs
